Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11837103 Dishrack, Lower   (Replaces: W10300732) Special Order $ 179.58

2 WPW10082868 Wheel & Transport Assembly   (Replaces: W10082868) In-Stock Immediately $ 49.90

3 W11830058 Silverware Basket Assembly   (Replaces: W11550304) Special Order $ 121.05

4 W11098065 Silverware, Basket   (Replaces: W10179398) In-Stock Immediately $ 131.70

5 W10193647 Lid, Side Special Order $ 10.90


    View Diagram in Separate Window     Print Icon   Print Part List

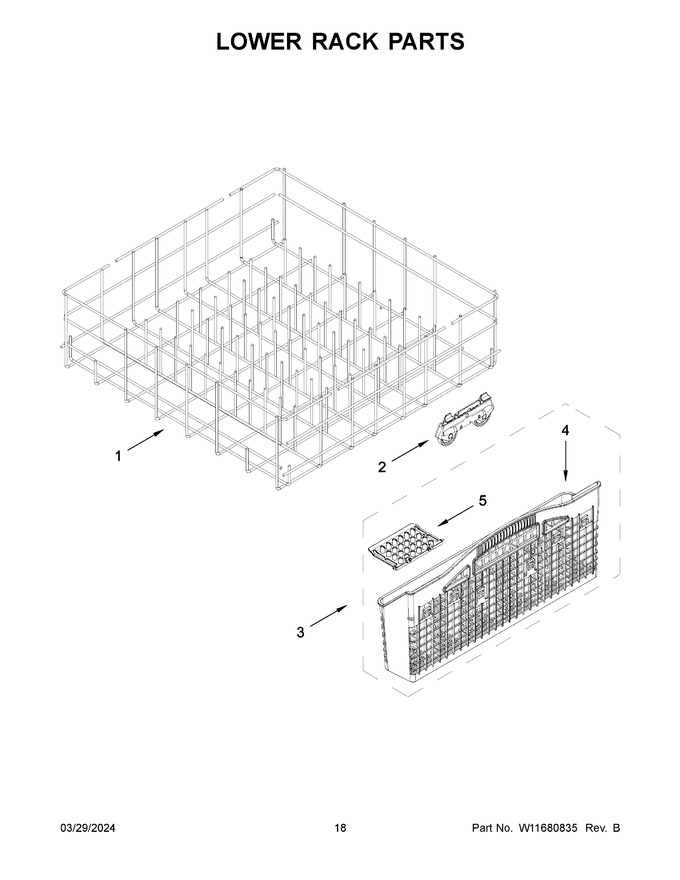

Diagram for WDP540HAMB4
