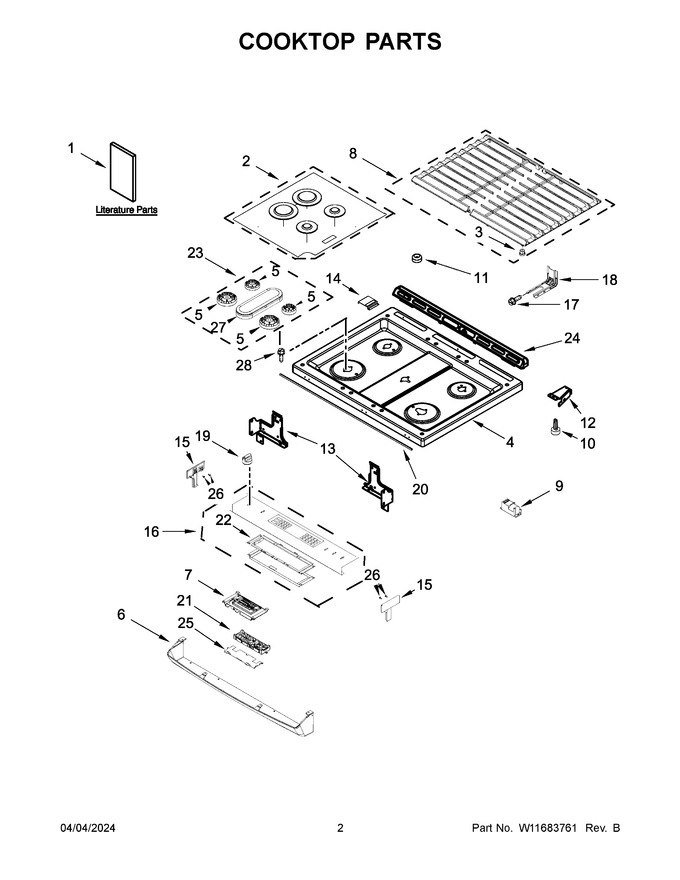

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11627729 | Owners Manual |
|
- | |||||
| 2 | W11834855 | Kit, Burner Cap (black (set Of 3)) (Replaces: W11367440) |
|
- | |||||
| 3 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 4 | W11441000 | Cooktop (black) (Replaces: W11341028) |
|
$ 433.37 | |||||
| 5 | W11436986 | Flame Spreader, Stack (left Front) (Replaces: W11348511) |
|
Immediately | $ 138.78 | ||||
| 6 | W10565662 | Panel, Lower Console (stainless) |
|
$ 209.37 | |||||
| 7 | W11108634 | Display, Assembly (Replaces: W10759326) |
|
$ 589.61 | |||||
| 8 | W11228127 | Kit, Grate (black) (Replaces: W10432535) |
|
$ 364.92 | |||||
| 9 | WPW10475149 | Module, Spark (Replaces: W10475149) |
|
Immediately | $ 217.24 | ||||
| 10 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 11 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 30.05 | |||||
| 14 | W11158783 | Shield, Keypad |
|
- | |||||
| 15 | W10557751 | Stainless (left) |
|
$ 168.85 | |||||
| 16 | W11686855 | Assembly, Console (stainless) (Replaces: W11562888) |
|
Immediately | $ 656.38 | ||||
| 17 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 18 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 19 | W11686856 | Knob (stainless) (Replaces: W11617406) |
|
$ 68.36 | |||||
| 20 | W11620671 | Gasket, Console And Cooktop (Replaces: W11512127) |
|
$ 25.12 | |||||
| 21 | W11686857 | Control, Electronic (Replaces: W11626845) |
|
$ 369.79 | |||||
| 22 | W10557780 | Bracket , Control |
|
$ 36.68 | |||||
| 23 | W11834876 | Burner Kit (set Of 5) (Replaces: W11367105) |
|
Immediately | $ 286.05 | ||||
| 24 | W11256338 | Trim, Vent (black) (Replaces: W10577781) |
|
$ 205.56 | |||||
| 25 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 26 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 27 | W11548764 | Spreader, Flame (fish) (Replaces: W11357364) |
|
$ 161.72 | |||||
| 28 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W11563527 | Bracket, Support (right) |
|
- | |||||
| 15A | W10557754 | Stainless (right) |
|
$ 168.85 | |||||
| 15B | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 1A | W11635379 | Tech Sheet |
|
- | |||||
| 1B | W11627731 | Quick Start Guide |
|
- | |||||
| 5A | W11531098 | Flame Spreader (left Rear) (Replaces: W11352197) |
|
$ 80.72 | |||||
| 5B | W11531097 | Flame Spreader (right Rear) (Replaces: W11352195) |
|
$ 81.15 | |||||
| 5C | W11531096 | Flame Spreader (right Front) (Replaces: W11352193) |
|
$ 81.92 | |||||
| 9A | W10860916 | Module, Spark (0 Plus 2) (Replaces: W10457998) |
|
Immediately | $ 345.26 | ||||
| NI | W10580229 | Wire, Ground |
|
$ 38.22 | |||||
| NI | W11198972 | Harness, Bake And Broil (Replaces: W10754419) |
|
$ 35.84 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11458864 | Harness, Main |
|
$ 185.20 | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 75.29 |
