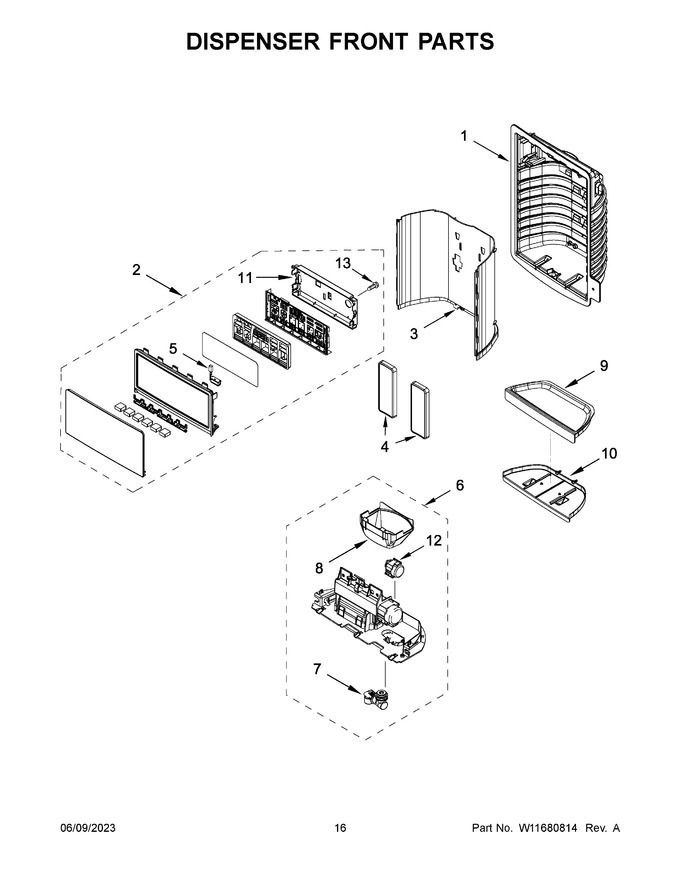

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
2	W11766556		Assembly, User Interface (stainless)   (Replaces: W11600493)				$ 464.76
3	W11045975		Wall, Dispenser False (white)		Appelez-nous	-
4	W10353846		Assembly, Pad (includes Blue Light) (white)				$ 280.01
5	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
6	WPW10353552		Assembly, Separator (includes Spigot And Ice Guide)   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
9	W11045970		Dispenser, Tray (white)				$ 65.93
10	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
11	W10254277		Cover, Board		Appelez-nous	-
12	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
13	2006254		Screw   (Replaces: 489214)				$ 13.79
10A	W10267861		Tray, Dispenser Slide (black)				$ 74.39
3A	W11045976		Wall, Dispenser False (black)				$ 43.18
4A	W11661207		Assembly, Pad (includes Blue Light) (black)   (Replaces: W10353847)				$ 66.19
9A	W11045971		Dispenser, Tray (black)				$ 65.90
