01 - Cover Sheet


02 - Top And Cabinet Parts

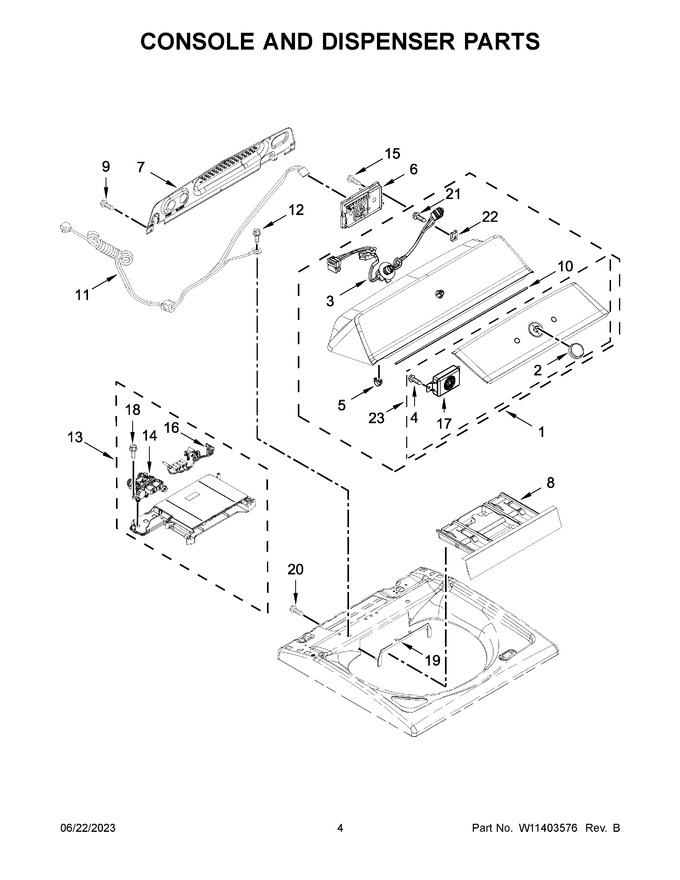

03 - Console And Dispenser Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11112662		Console (chrome Shadow)   (Replaces: W11035010)				$ 714.13
2	W10853910		Assembly, Timer Knob (chrome)   (Replaces: W10727011)				$ 53.94
3	W11199207		Harness, Ui   (Replaces: W10771770)				$ 170.43
4	WP9740849		Screw   (Replaces: 9740849)				$ 7.30
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11417461		Control Unit Assembly, Machine And Motor   (Replaces: W11266625)				$ 523.16
7	W10611544		Panel, Console Rear Cover				$ 341.23
8	W11397976		Assembly, Dispenser Drawer (chrome Shadow)   (Replaces: W10795361)			Immediately	$ 106.30
9	W11685943		Screw   (Replaces: W10660565)				$ 14.97
10	W10726624		Seal, Console				$ 32.26
11	W11096073		Cord, Power   (Replaces: W10770108)				$ 126.62
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W11172234		Assembly, Housing   (Replaces: W11096285)			Immediately	$ 205.99
14	W11165546		Valve, Water Inlet   (Replaces: W11096267)			Immediately	$ 108.31
15	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
16	W11193817		Harness, Valve   (Replaces: W10849297)			Immediately	$ 186.35
17	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.80
19	W10601876		Assembly, Dispenser Bezel (chrome Shadow)				$ 31.03
20	W11700520		Screw   (Replaces: 3400061)				$ 14.28
21	W11311945		Screw   (Replaces: 12990204)				$ 14.72
22	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
23	W11115283		Assembly, Fascia (grey)   (Replaces: W11035069)			Immediately	$ 552.55
