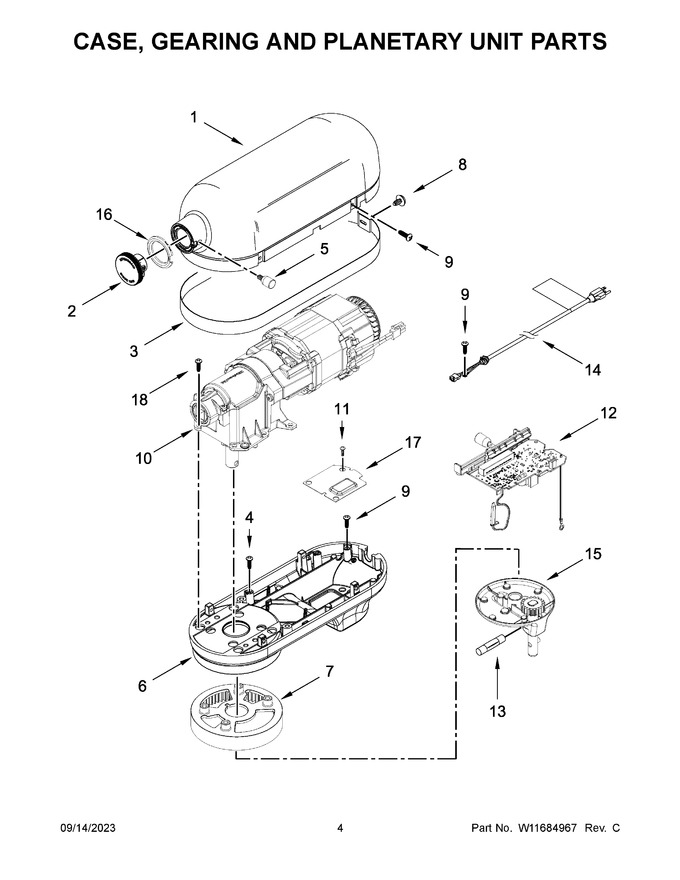

03 - Case, Gearing And Planetary Unit Parts


04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI04492D1CA31AFBFFD415C296C74FF36B		Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
2	W11677160		Cap, Attachment Hub   (Replaces: W11618094)		Appelez-nous	-
3	ARIAF8C99319F4C5388B29C3E418839765F		Trim Band (refer To Color Variation Parts Page)		Appelez-nous	-
4	W10914506		Screw   (Replaces: W10351843)				$ 4.59
5	W11677196		Thumb Screw (black)   (Replaces: W11521861)		Appelez-nous	-
6	ARIC9AE4D3775C921B31E5C6C2ACACE553C		Lower Gearcase (refer To Colorvariation Parts Page)		Appelez-nous	-
7	W11647948		Gear, Ring And Plate Assembly   (Replaces: W11454895)		Appelez-nous	-
8	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
9	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
10	W11680055		Motor, 127 Volt Assembly   (Replaces: W11480078)		Appelez-nous	-
11	W11677192		Screw   (Replaces: W10419037)		Appelez-nous	-
12	W11685529		Control Assembly, 100/127 Volt   (Replaces: W11509357)		Appelez-nous	-
13	WPW10234531		Pin, Groove   (Replaces: W10234531)			Immediately	$ 5.29
14	W11685530		Cord, Power (black)   (Replaces: W11644680)		Appelez-nous	-
15	ARI2C54D97F5D296EF7DCEE4AED6DC7F137		Planetary Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
16	W11123129		Ring, Attachment Hub   (Replaces: 9706141)				$ 19.69
17	W11560130		Plate, Lower Housing		Appelez-nous	-
18	W11677193		Screw   (Replaces: W11457471)		Appelez-nous	-
