01 - Cover Sheet

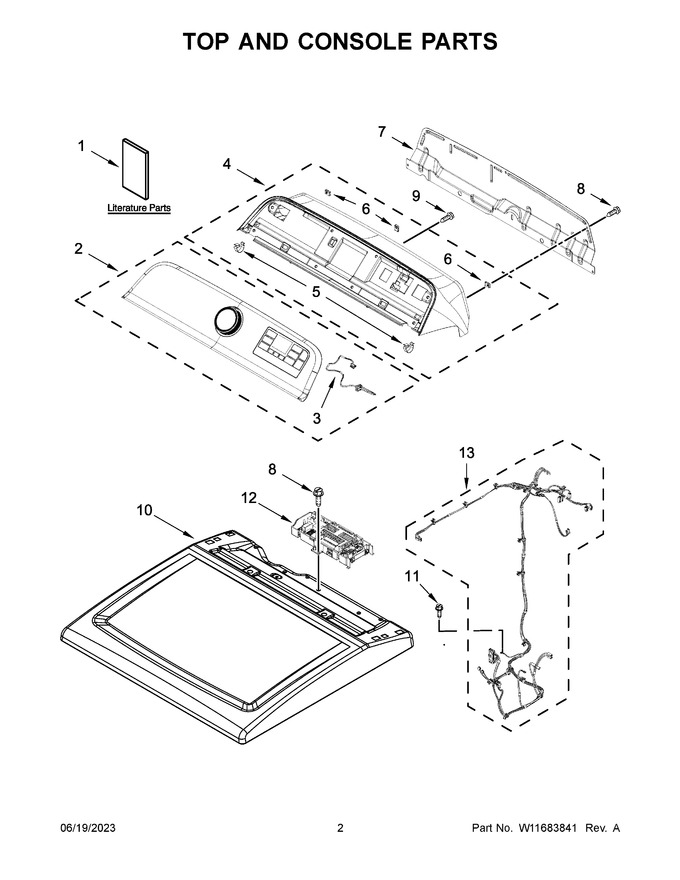

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11555818 | Installation Instructions |
|
- | |||||
| 2 | W11626080 | Console Fascia Assembly (Replaces: W11562730) |
|
Immediately | $ 557.13 | ||||
| 3 | W11164312 | Harness, User Interface (hmi) |
|
$ 159.98 | |||||
| 4 | W11401363 | Console (white) (Replaces: W11178519) |
|
$ 346.71 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.74 | |||||
| 7 | W11433112 | Panel, Rear Console |
|
$ 62.93 | |||||
| 8 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 9 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 10 | W11641121 | Top (white) (Replaces: W11623537) |
|
Immediately | $ 204.86 | ||||
| 11 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 12 | W11782455 | Appliance Control Unit (acu) (Replaces: W11577499) |
|
$ 281.62 | |||||
| 13 | W11556660 | Harness, Main |
|
- | |||||
| 10A | W11641122 | Top (chrome Shadow) (Replaces: W11623547) |
|
$ 256.02 | |||||
| 1A | W11175222 | Tech Sheet |
|
- | |||||
| 1B | W11550670 | Quick Start Guide |
|
- | |||||
| 4A | W11401366 | Console (chrome Shadow) (Replaces: W11178520) |
|
Immediately | $ 360.59 |
