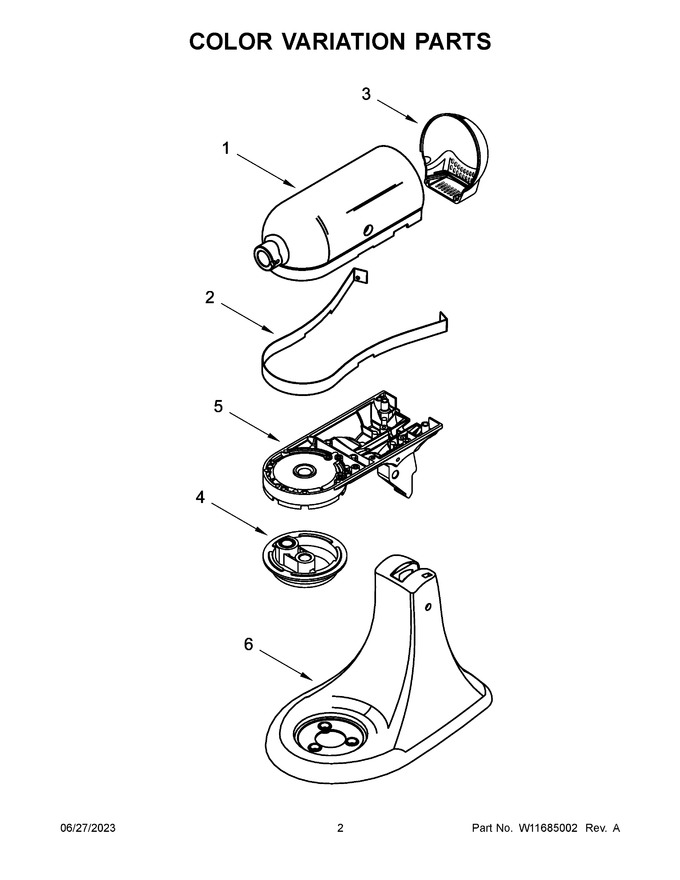

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11605631 | Motor Housing (candy Apple Red) |
|
- | |||||
| 2 | W11188411 | Trim Band (platinum) (Replaces: W10863292) |
|
- | |||||
| 3 | WPW10239110 | End Cover (candy Apple Red) (Replaces: W10239110) |
|
$ 28.91 | |||||
| 4 | W10239112 | Planetary (candy Apple Red) |
|
$ 45.31 | |||||
| 5 | W10245786 | Lower Gearcase (candy Apple Red) |
|
- | |||||
| 6 | W11097313 | Pedestal, W/feet And Headlock (candy Apple Red) (Replaces: W10245720) |
|
- | |||||
| 1A | W11601753 | Motor Housing (pebbled Palm) |
|
- | |||||
| 3A | W11346216 | End Cover (pebbled Palm) |
|
- | |||||
| 4A | W11346226 | Planetary (pebbled Palm) |
|
- | |||||
| 5A | W11346221 | Lower Gearcase (pebbled Palm) |
|
- | |||||
| 6A | W11346220 | Pedestal, W/feet And Headlock (pebbled Palm) |
|
- |
