View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:

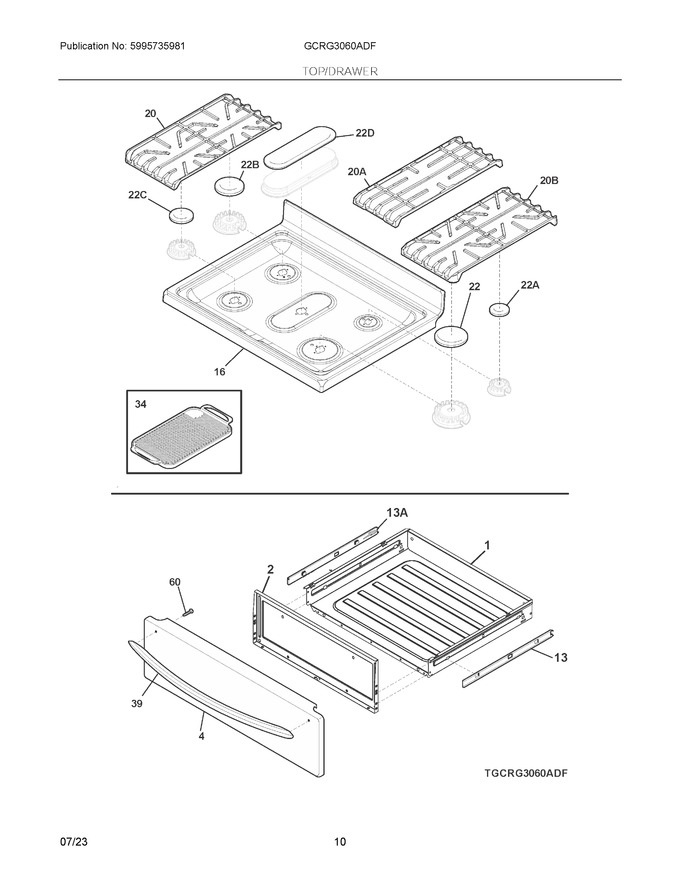

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807082503 | Drawer-utility Raw With Stop, 1 |
|
- | |||||
| 2 | 5304527988 | Liner, Drawer |
|
Immediately | $ 29.49 | ||||
| 4 | 5304517133 | Panel, Drawer, Black Stainless |
|
$ 215.54 | |||||
| 8 | 808608804 | Spark Module |
|
Immediately | $ 84.51 | ||||
| 12 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 16.85 | ||||
| 13 | 316415000 | Glide, Warmer, Inner Rh |
|
$ 65.36 | |||||
| 16 | 316610014 | Main Top, Black |
|
Immediately | $ 281.14 | ||||
| 20 | 808754701 | Grate, Black, Lh |
|
$ 214.99 | |||||
| 22 | 5304527846 | Cap-burner, 17k, Black, Matte, 3mm |
|
$ 31.17 | |||||
| 34 | 5304495353 | Griddle |
|
Immediately | $ 185.38 | ||||
| 37 | 316240600 | Screw, Assy Mtg, (8), Ignitor/orifice |
|
Immediately | $ 13.48 | ||||
| 39 | 316554009 | Handle, Door/drawer, Black Stainless, W/spacers |
|
$ 210.45 | |||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 13A | 316415001 | Glide, Warmer, Inner Lh |
|
Immediately | $ 65.36 | ||||
| 20A | 808754801 | Grate, Black, Center |
|
$ 218.93 | |||||
| 20B | 808754702 | Grate, Black, Rh |
|
$ 214.99 | |||||
| 22A | 5304524590 | Cap-burner, 5a, Black, Matte, 3mm |
|
$ 21.06 | |||||
| 22B | 5304527845 | Cap-burner, 14k, Black, Matte, 3mm |
|
$ 25.28 | |||||
| 22C | 5304508442 | Cap-burner, 9.5k, Black, Matte, 3mm (Replaces: 5304527843) |
|
Immediately | $ 40.61 | ||||
| 22D | 316559604 | Cap, 9.5k Burner, Black, Oval |
|
$ 80.33 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316260800 | Screw-shoulder, W/shoulder, #8-18 X 1/2 |
|
$ 14.96 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 6.30 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 15.75 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.37 | |||||
| NI | 316021132 | Screw, 8-18 X 11/16, Black, (3) |
|
$ 14.32 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 14.96 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 | |||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 11.13 | |||||
| NIA | 5304505563 | Wire, Ground, Spark Module, W/connector |
|
Immediately | $ 18.03 |
