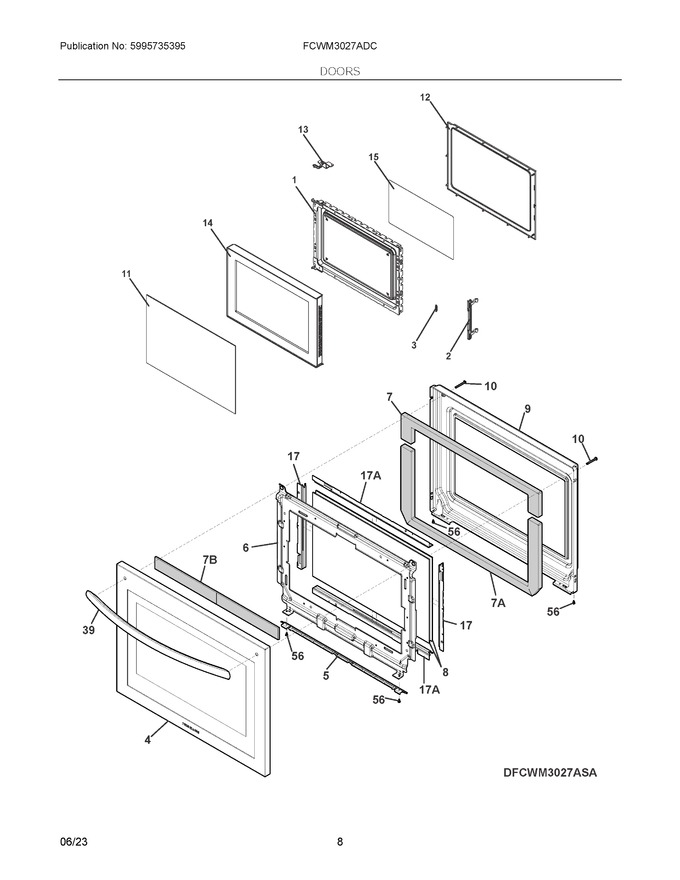

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520033		Frame Assembly, Door		Appelez-nous	-
2	5304519330		Latch Assembly, Door				$ 13.66
3	5304520034		Spring, Latch		Appelez-nous	-
4	5304526642		Door Assembly, Outer, Steel/glass, Black Stainless, W/badge				$ 232.79
5	5304530443		Bracket, Door Protection, Lower				$ 36.24
6	5304526282		Shield, Wool, Door				$ 77.52
7	140293846022		Insulation, Door, Top   (Replaces: 5304526656)			Immediately	$ 7.94
8	5304526387		Glass, Door, Inner, Shr, Pf			Immediately	$ 184.54
9	5304530464		Liner, Oven Door, Midnight Black			Immediately	$ 90.78
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.			Immediately	$ 2.53
11	5304520037		Screen, Door				$ 137.47
12	5304520035		Gasket, Door		Appelez-nous	-
13	5304519333		Hinge, Door, Upper				$ 27.36
14	5304520038		Panel, Door				$ 116.11
15	5304520036		Film, Door, Inner				$ 13.66
17	5304526284		Bracket, Glass Pack, Verticle			Immediately	$ 13.48
39	140067504104		Handle, Door, Black Stainless, 39   (Replaces: 5304529980)		Appelez-nous	-
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
17A	5304526285		Bracket, Glass Pack, Horizontal				$ 10.11
7A	5304526655		Insulation, Door, Bottom			Immediately	$ 10.11
7B	5304526530		Insulation, Foil, Door				$ 16.85
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
