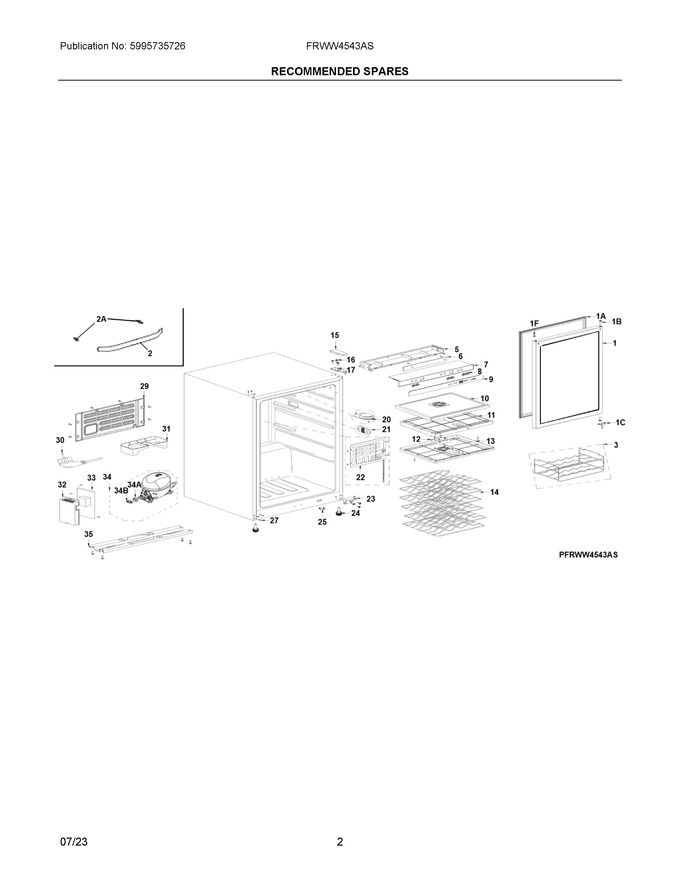

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304531676		Door Assembly, Complete, Glass, Stainless Trim				$ 261.79
2	5304479812		Handle Assembly, Door				$ 188.10
3	5304479821		Rack, Removeable, Bottom				$ 242.71
5	5304531680		Housing, Control Panel		Appelez-nous	-
6	5304507019		Pc Board, Input, Display				$ 293.99
7	5304479815		Overlay, Control Board, Cover				$ 54.34
8	5304531679		Button, Control		Appelez-nous	-
9	5304531678		Overlay, Control Panel		Appelez-nous	-
10	5304479874		Panel, Divider, Top				$ 85.05
11	5304479875		Divider, Styrofoam		Appelez-nous	-
12	5304507021		Fan Assembly				$ 134.23
13	5304479876		Panel, Divider, Bottom		Appelez-nous	-
14	5304479820		Shelf, Wine, Wood				$ 318.84
15	5304479782		Cover, Top Hinge				$ 21.16
16	5304480019		Screw, Tapping-locking				$ 7.83
17	5304479781		Hinge, Top				$ 62.11
20	5304479803		Lamp Assembly, Led				$ 94.98
21	5304479805		Cover, Temp Sensor			Immediately	$ 49.15
22	5304479806		Evaporator		Appelez-nous	-
23	5304520285		Hinge, Lower				$ 58.39
24	5304479819		Foot, Leveling Screw, Cabinet				$ 26.23
25	5304531677		Switch, Light				$ 4.58
27	5304479779		Plug, Hinge Hole, Cabinet				$ 8.45
29	5304479822		Cover, Access, Rear		Appelez-nous	-
30	5304531682		Cord, Power				$ 44.56
31	5304531683		Tray, Drip		Appelez-nous	-
32	5304531684		Housing, Main Control		Appelez-nous	-
33	5304507018		Pc Board, Power, Main				$ 377.67
34	5304531685		Compressor, Fixed Speed, Reciprocating				$ 443.12
35	5304479825		Base, Compressor		Appelez-nous	-
1A	5304479808		Gasket, Door				$ 130.10
1B	5304513161		Bearing, Top Hinge, (2)				$ 2.83
1C	5304479790		Stop, Door				$ 10.63
1F	5304479809		Plug, Door Hole				$ 19.13
2A	5304513163		Screw, Shoulder, (2), Handle Mtg.			Immediately	$ 34.89
34A	5304534143		Relay, Starter		Appelez-nous	-
34B	5304534144		Overload, Protector		Appelez-nous	-
