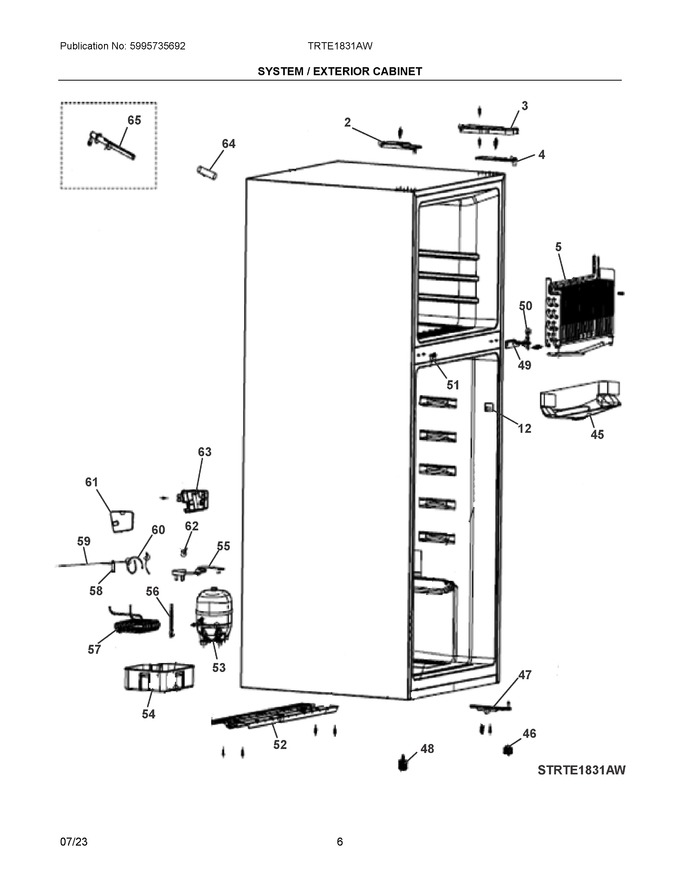

04 - System / Exterior Cabinet


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304518573		Cover, Hinge Holes, White, Upper				$ 50.85
3	5304529311		Cover, Hinge, White, Upper		Appelez-nous	-
4	5304529312		Hinge, Upper, Rh		Appelez-nous	-
5	5304533003		Evaporator, Fin		Appelez-nous	-
12	5304524331		Switch, Door			Immediately	$ 65.28
45	5304529344		Trough, Drain, Evaporator				$ 81.50
46	5304534465		Foot, Cabinet, Adjustable   (Replaces: 5304529345)			Immediately	$ 6.58
47	5304529346		Hinge, Door, Lower				$ 66.93
48	5304518500		Foot, Cabinet, White, Adjustable   (Replaces: 5304518536)			Immediately	$ 37.58
49	5304529347		Hinge, Door, Middle				$ 79.62
50	5304529348		Spacer, Hinge, Middle		Appelez-nous	-
51	5304529349		Cover, Screw, Middle Hinge		Appelez-nous	-
52	5304521532		Base, Compressor				$ 223.92
53	5304533013		Compressor			Immediately	$ 520.72
54	5304521531		Tray, Water				$ 55.38
55	5304533014		Cord, Power, Electric Srvc			Immediately	$ 111.78
56	5304518525		Drain Pipe				$ 29.58
57	5304529351		Condenser, Evaporative		Appelez-nous	-
58	A19676501		Drier, Filter   (Replaces: 5304533015)			Immediately	$ 106.99
59	5304521528		Pipe, Suction			Immediately	$ 73.84
60	5304518526		Wire, Grounding			Immediately	$ 33.37
61	4056015920		Cover, Water Valve   (Replaces: 5304529352)		Appelez-nous	-
62	5304525382		Tube, Process		Appelez-nous	-
63	5304529354		Housing, Water Valve		Appelez-nous	-
64	5304529355		Sponge, Filler, Water Inlet				$ 4.55
65	5304529356		Tube, Fill, Water				$ 9.86
53A	5304521879		Sensor, Air Tower			Immediately	$ 96.53
NIA	5304531820		Cover, Hinge, White, Lh Upper, (optional)		Appelez-nous	-
NIA	5304533002		Hinge, Door, Lh Upper				$ 52.40
NIA	5304533004		Heater, Defrost		Appelez-nous	-
