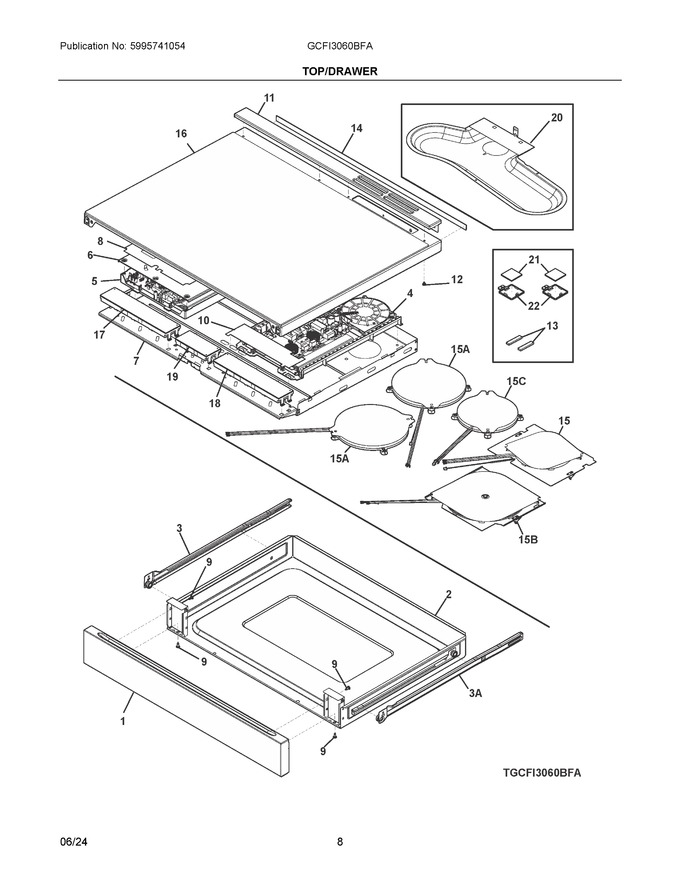

04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304528223		Panel, Drawer, Ez Care Stnlss, Outer				$ 125.30
2	5304528242		Drawer Assembly, W/glides			Immediately	$ 110.58
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 23.71
4	5304535093		Control Module, Induction, King Tiger			Immediately	$ 175.42
5	5304533955		Control Module, Induction, King Leopard			Immediately	$ 241.93
6	5304528719		Support, Induction Coil		Appelez-nous	-
7	5304528600		Box, Induction				$ 82.36
8	5304533973		Shield, Mica Pad, Thermal Resist				$ 13.45
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
10	5304533978		Deflector, Air, Fishpaper			Immediately	$ 22.27
11	5304533957		Trim, Vent, Black, Rear				$ 136.90
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
13	5304533975		Spacer, Cooktop Box		Appelez-nous	-
14	5304528554		Seal, Smoothtop			Immediately	$ 35.40
15	387404760		Element Assembly, Induction Coil, 140mm			Immediately	$ 96.47
16	5304528693		Smoothtop, Assembly, Black				$ 290.14
17	140202105049		Controller, Electronic, Lh Ctc, Iceberg   (Replaces: 5304535118)			Immediately	$ 173.82
18	140202106047		Controller, Electronic, Rh Ctc, Iceberg   (Replaces: 5304535119)			Immediately	$ 175.53
19	1412021067042		Controller, Electronic, Slim Ctc, Iceberg   (Replaces: 5304535120)		Appelez-nous	-
20	5304533953		Duct, Air Intake		Appelez-nous	-
21	357252801		Shielding, Ferrite Bar		Appelez-nous	-
22	5304533467		Bracket, Ferrite Shield		Appelez-nous	-
15A	357226373		Element, Induction Coil, 180 Mm			Immediately	$ 86.81
15B	387761255		Element Assembly, Induction Coil, 210mm				$ 99.90
15C	357226275		Element, Induction Coil, 140 Mm				$ 80.30
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 23.71
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.54
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	5304533468		Harness, Wiring, Ferrite Ground				$ 29.72
NI	5304533972		Harness, Wiring, Cooktop Power, Induction				$ 196.40
NI	5304533958		Harness, Wiring, Induction Power				$ 69.29
NI	5304533959		Harness, Wiring, Communication, Pux-iceberg			Immediately	$ 50.86
