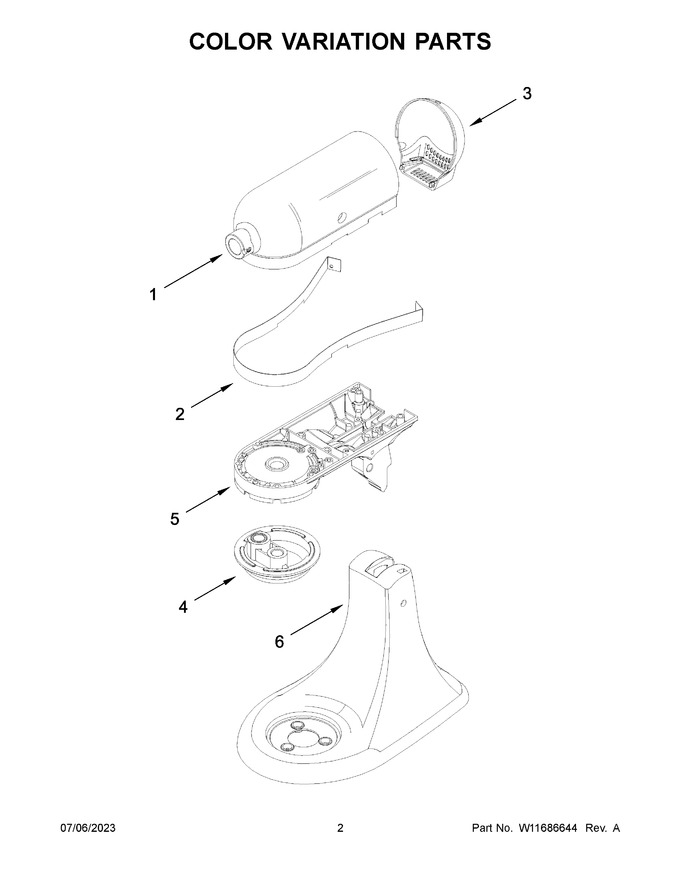

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 24029120 | Motor Housing (majestic Yellow) |
|
- | |||||
| 2 | W11433197 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | 24025321 | End Cover (majestic Yellow) |
|
- | |||||
| 4 | 24028622 | Planetary (majestic Yellow) |
|
- | |||||
| 5 | 24035093 | Lower Gearcase (majestic Yellow) |
|
- | |||||
| 6 | 3184281 | Pedestal, W/feet And Headlock (majestic Yellow) |
|
- |
