01 - Cover Sheet

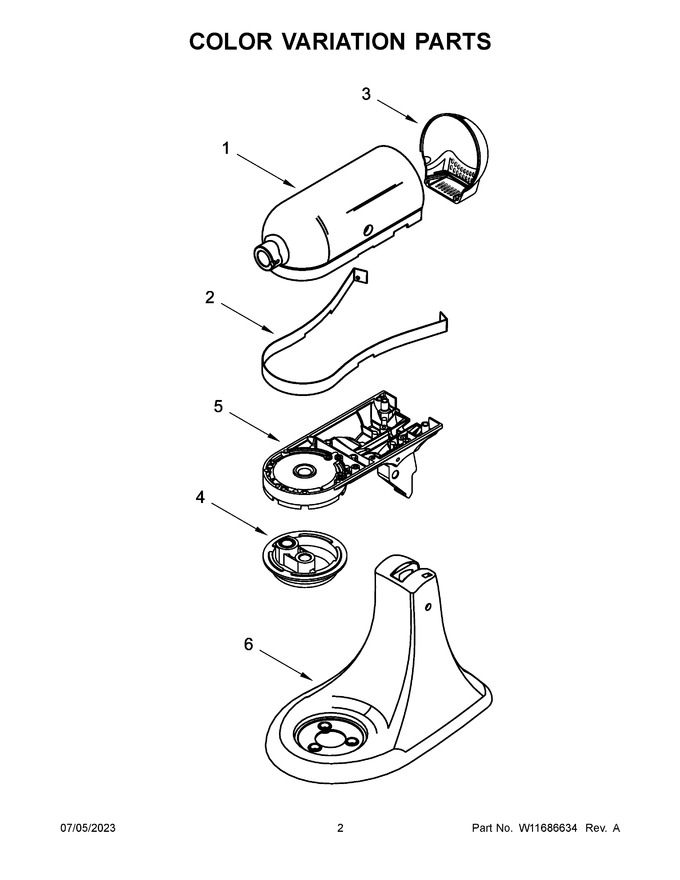

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11605627 | Motor Housing (almond Creme) |
|
- | |||||
| 2 | W11188411 | Trim Band (platinum) (Replaces: W10863292) |
|
- | |||||
| 3 | 24025316 | End Cover (almond Cream/creme) |
|
- | |||||
| 4 | 24028618 | Planetary (almond Cream/creme) |
|
- | |||||
| 5 | 24035062 | Lower Gearcase (almond Cream/creme) |
|
- | |||||
| 6 | W11131691 | Pedestal, W/feet And Headlock (almond Cream/creme) (Replaces: 9705577) |
|
- | |||||
| 1A | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 1B | W11603707 | Motor Housing (milkshake/matte Milkshake) |
|
- | |||||
| 1C | W11601672 | Motor Housing (onyx Black) |
|
$ 90.25 | |||||
| 3A | 24025322 | End Cover (empire Red) |
|
- | |||||
| 3B | W11113835 | End Cover (milkshake/matte Milkshake) |
|
- | |||||
| 3C | 24025314 | End Cover (onyx Black) |
|
- | |||||
| 4A | 24028623 | Planetary (empire Red) |
|
- | |||||
| 4B | W11113886 | Planetary (milkshake/matte Milkshake) |
|
- | |||||
| 4C | 24028616 | Planetary (onyx Black) |
|
- | |||||
| 5A | 24035091 | Lower Gearcase (empire Red) |
|
- | |||||
| 5B | W11113859 | Lower Gearcase (milkshake/matte Milkshake) |
|
- | |||||
| 5C | 24035056 | Lower Gearcase (onyx Black) |
|
- | |||||
| 6A | 3184280 | Pedestal, W/feet And Headlock (empire Red) |
|
- | |||||
| 6B | W11259895 | Pedestal, W/feet And Headlock (milkshake/matte Milkshake) |
|
- | |||||
| 6C | W11205080 | Pedestal, W/feet And Headlock (onyx Black) (Replaces: 3184275) |
|
- |
