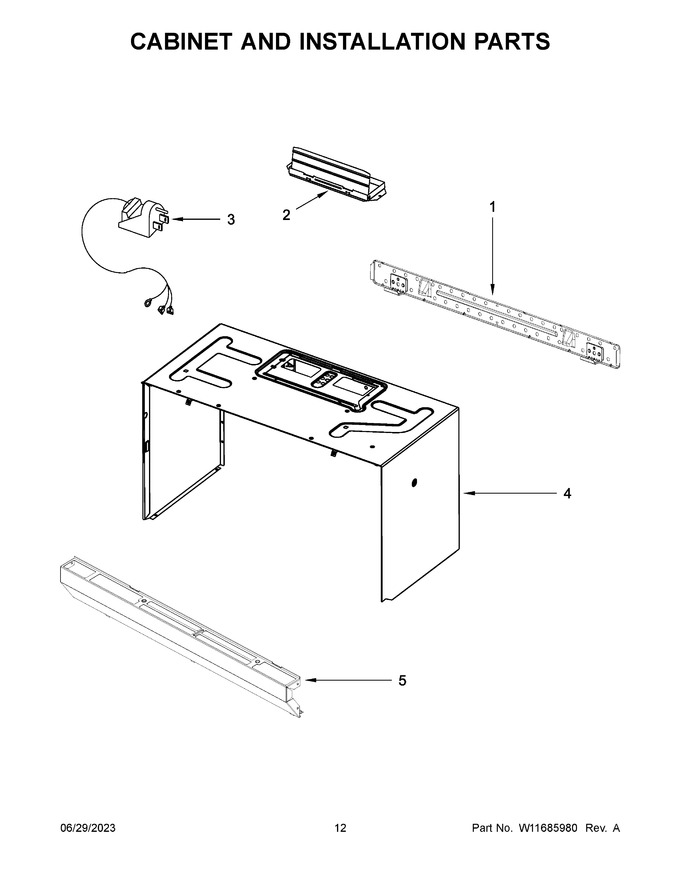

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting |
|
Immediately | $ 24.69 | ||||
| 2 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 73.04 | ||||
| 3 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 21.56 | |||||
| 4 | W11776420 | Case, Outer (black) (Replaces: W11446916) |
|
Immediately | $ 182.16 | ||||
| 5 | W10845643 | Grille, Vent (black) |
|
$ 108.35 | |||||
| NI | W11685583 | Miscellaneous Parts, Harness, Main (Replaces: W11544126) |
|
$ 80.02 | |||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 7.55 | ||||
| NI | W11301790 | Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer |
|
Immediately | $ 153.00 | ||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 103.72 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 |
