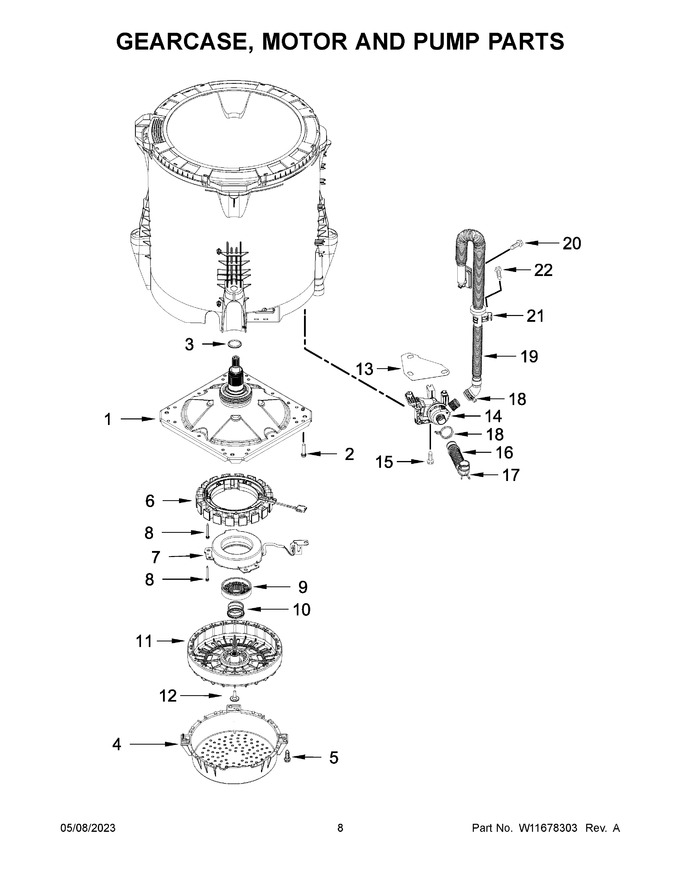

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11449841		Drive Assembly   (Replaces: W11185701)			Immediately	$ 290.65
2	WPW10249633		Screw   (Replaces: W10249633)			Immediately	$ 7.55
3	W11553312		Washer, Thrust   (Replaces: W11218170)			Immediately	$ 15.79
4	W11627512		Guard, Rotor   (Replaces: W11539888)			Immediately	$ 88.33
5	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
6	W11195971		Stator, Motor   (Replaces: W10897050)			Immediately	$ 234.65
7	W10754448		Assembly, Clutch   (Replaces: W10905022)			Immediately	$ 137.09
8	W11027980		Screw   (Replaces: W10644129)			Immediately	$ 8.12
9	W10734521		Slider   (Replaces: W10905025)			Immediately	$ 42.17
10	W10734521		Assembly, Spring   (Replaces: W10006494)			Immediately	$ 42.17
11	W11260238		Rotor, Motor   (Replaces: W10897040)			Immediately	$ 137.07
12	W10752189		Screw   (Replaces: W10636382)			Immediately	$ 8.86
13	W10894129		Shield, Heat		Appelez-nous	-
14	W10876600		Pump Assembly, Drain   (Replaces: W10727777)			Immediately	$ 180.49
15	WPW10004910		Screw   (Replaces: W10004910)				$ 8.39
16	W10802689		Hose, Tub To Pump   (Replaces: W10763259)				$ 34.64
17	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
18	WP285655		Clamp, Hose   (Replaces: W10142630)			Immediately	$ 8.81
19	W11035296		Hose, Internal Drain   (Replaces: W10786886)				$ 61.20
20	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
21	W10652932		Clip, Hose				$ 42.99
22	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80

    View Diagram in Separate Window       Print Part List
