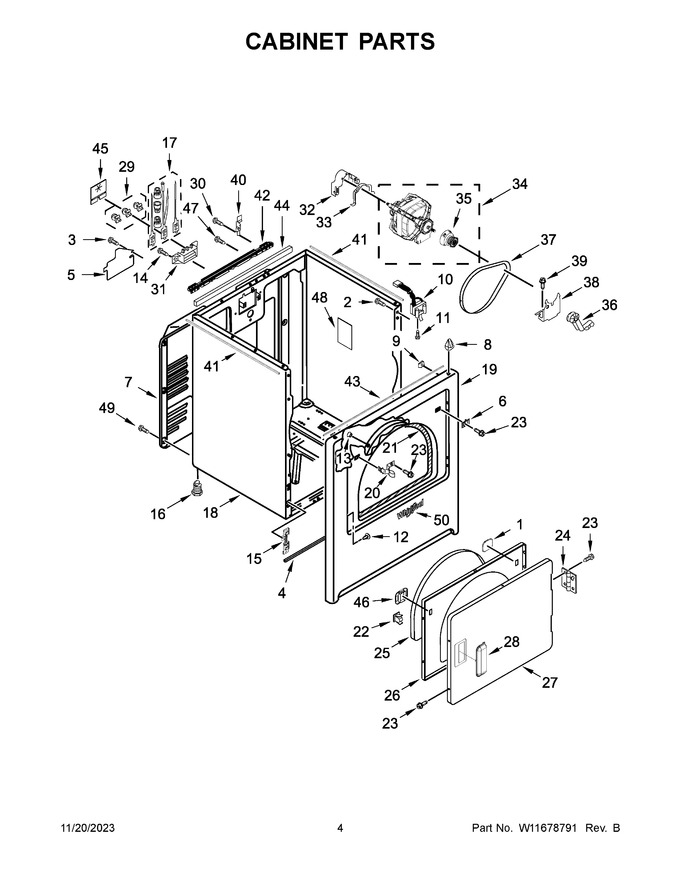

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11173656		Cover, Door Catch   (Replaces: W10529198)				$ 8.20
2	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	W11596046		Seal, Spill Guard   (Replaces: W10841728)			Immediately	$ 54.09
5	W11298298		Cover, Terminal Block   (Replaces: W11219688)				$ 93.91
6	W11684591		Plug, Strike   (Replaces: W10567345)			Immediately	$ 8.13
7	W11708115		Panel, Rear   (Replaces: W11593118)				$ 181.67
8	WP8066092		Lock, Front Top   (Replaces: 8066092)			Immediately	$ 20.48
9	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
10	WP3406107		Switch, Door   (Replaces: W10569603)			Immediately	$ 31.20
11	WP3395530		Screw   (Replaces: 697773)				$ 8.57
12	W11633117		Hinge Hole Cover (black)   (Replaces: W11564873)		Appelez-nous	-
13	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
14	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
15	W10854425		Clip, Front Panel   (Replaces: W10775448)			Immediately	$ 16.34
16	W11025920		Foot, Dryer   (Replaces: W10779369)			Immediately	$ 24.69
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
18	W11564800		Cabinet (black)				$ 545.29
19	W11633281		Panel, Front (black)   (Replaces: W11564868)			Immediately	$ 257.11
20	W11429589		Strike, Door   (Replaces: W11224633)			Immediately	$ 20.99
21	W11035878		Assembly, Seal And Bearing   (Replaces: W10803476)			Immediately	$ 78.78
22	W11429587		Assembly, Door Catch   (Replaces: W11224630)			Immediately	$ 26.55
23	WP488627		Screw   (Replaces: 342055)				$ 8.11
24	W11633119		Assembly, Hinge And Pin (black)   (Replaces: W11555347)			Immediately	$ 59.61
25	W10861521		Seal, Door   (Replaces: W10730752)			Immediately	$ 58.69
26	WPW10463967		Door, Inner   (Replaces: W10463967)				$ 230.70
27	W11633313		Door, Front (black)   (Replaces: W11564870)				$ 340.35
28	W11633280		Handle, Door (black)   (Replaces: W11564880)				$ 19.79
29	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
30	W10850756		Screw   (Replaces: W10773242)				$ 8.20
31	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
32	WP3404162		Clamp, Motor (with Shield)   (Replaces: 3404162)			Immediately	$ 8.21
33	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
34	279827		Assembly, Motor   (Replaces: W10396029)			Immediately	$ 191.95
35	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 51.02
36	WP691366		Idler Assembly   (Replaces: 691366)			Immediately	$ 22.47
37	341241		Belt, Drive   (Replaces: W10131364)			Immediately	$ 18.15
38	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
39	3400500		Bolt			Immediately	$ 14.04
40	W11715722		Hinge, Top   (Replaces: W10641296)				$ 8.19
41	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 8.45
42	W10641295		Bracket, Rear				$ 41.90
43	W10316619		Seal, Spill Guard				$ 28.21
44	W10685675		Seal, Rear Panel				$ 19.85
45	W11627518		Pad, Power Cord   (Replaces: W11532648)				$ 22.53
46	WPW10529197		Bezel, Door Catch   (Replaces: W10529197)			Immediately	$ 25.46
47	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
48	W11409002		Pad, Foam   (Replaces: W10653662)				$ 23.76
49	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
50	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
