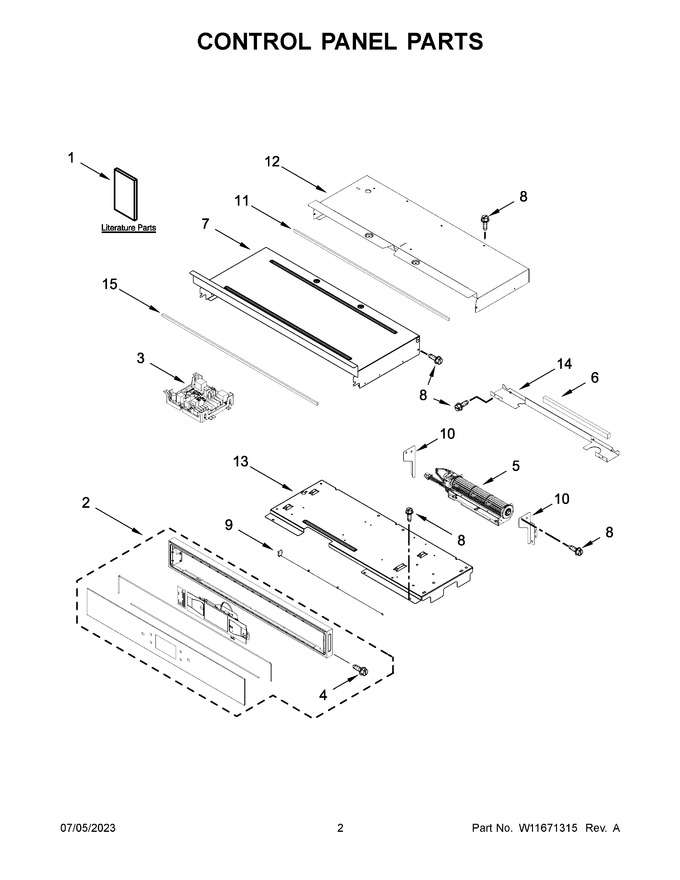

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11555306		Owner's Manual		Appelez-nous	-
2	W11670957		Assembly, Control Panel (includes Overlay) (black Stainless)   (Replaces: W11639722)				$ 1,077.13
3	W11261165		Appliance Manager, Copernicus (with Power Supply)   (Replaces: W11253186)			Immediately	$ 349.13
4	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
7	W11821591		Cover, 30 In Chassis Top Front   (Replaces: W11244445)		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W11537624		Antenna   (Replaces: W11409842)				$ 106.06
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10728475		Gasket, Rubber				$ 38.13
12	W11223325		Cover, 30 In Chassis Top Back				$ 85.77
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11553919		Quick Start Guide		Appelez-nous	-
1B	W11623570		Tech Sheet		Appelez-nous	-
NI	W11233570		Harness, Console			Immediately	$ 234.66
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11759107		Harness, Main   (Replaces: W11245665)				$ 242.33
NI	W11256626		Harness, Signal		Appelez-nous	-
NI	W10487999		Clip, Harness				$ 21.12
NI	4448664		Clamp, Conduit				$ 21.41
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	4450800		Screw, Grounding				$ 13.47
NI	W11607072		Bag, Hardware   (Replaces: W11547720)			Immediately	$ 15.39
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
