01 - Cover Sheet

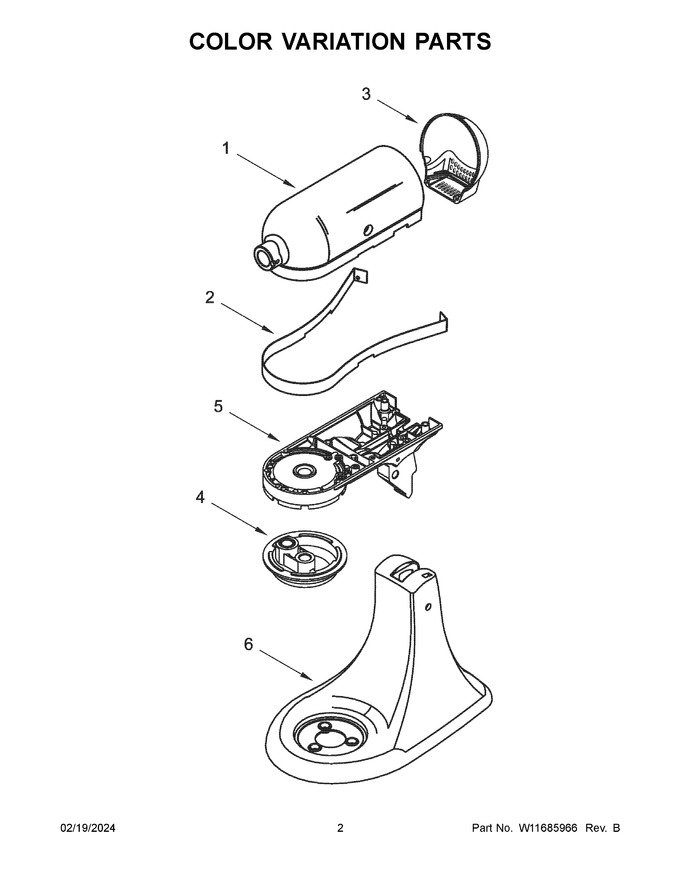

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11667101 | Motor Housing (blue Steel) |
|
- | |||||
| 2 | W11230105 | Trim Band (black/frost) (Replaces: W10431041) |
|
- | |||||
| 3 | W10787886 | End Cover (blue Steel) |
|
- | |||||
| 4 | W10787888 | Planetary (blue Steel) |
|
- | |||||
| 5 | W10787890 | Lower Gearcase (blue Steel) |
|
- | |||||
| 6 | W11697204 | Pedestal, W/feet And Headlock (blue Steel) |
|
- | |||||
| 1A | W11601770 | Motor Housing (contour Silver) |
|
- | |||||
| 1B | W11601726 | Motor Housing (metallic Chrome) |
|
- | |||||
| 3A | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 3B | 9704029 | End Cover (metallic Chrome) |
|
- | |||||
| 4A | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 4B | 9706670 | Planetary (metallic Chrome) |
|
Immediately | $ 45.31 | ||||
| 5A | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 5B | 9706662 | Lower Gearcase (metallic Chrome) (Replaces: 9707219) |
|
$ 68.93 | |||||
| 6A | W10482478 | Pedestal, W/feet And Headlock (contour Silver) |
|
- | |||||
| 6B | 9707188 | Pedestal, W/feet And Headlock (metallic Chrome) |
|
- |
