SELECT A DIAGRAM
New Model Search:

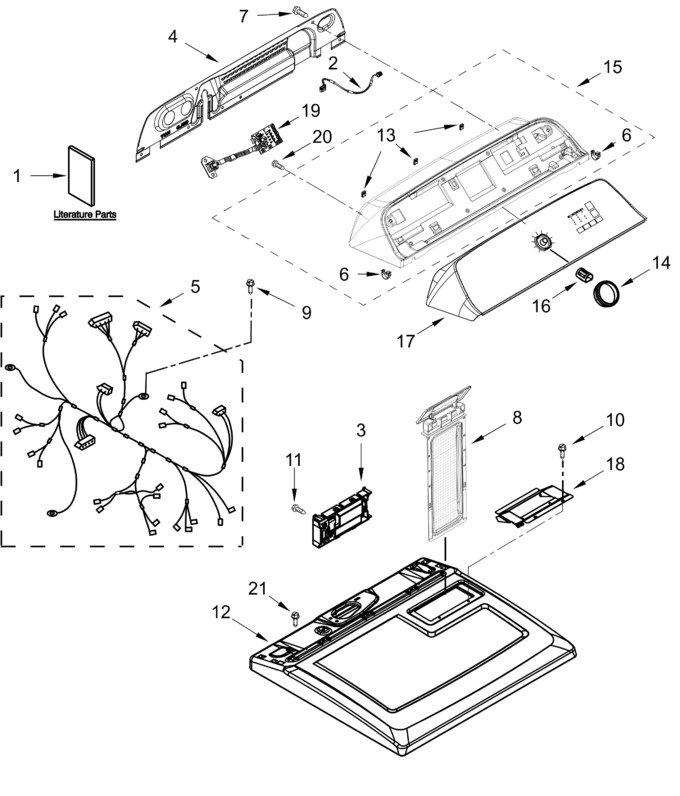

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11551859 | Hmi Harness |
|
$ 30.82 | |||||
| 3 | W11728016 | Appliance Control Unit (acu) (Replaces: W11581953) |
|
Immediately | $ 256.66 | ||||
| 4 | W10775189 | Panel, Rear |
|
$ 390.13 | |||||
| 5 | W11591407 | Harness, Main (Replaces: W11448300) |
|
$ 252.72 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 8 | W11778254 | Screen, Lint (white) (Replaces: W11538108) |
|
Immediately | $ 54.63 | ||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 11 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 12 | W11222514 | Top (white) (Replaces: W10613389) |
|
Immediately | $ 196.23 | ||||
| 13 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 8.13 | |||||
| 14 | W11662669 | Knob Assembly (Replaces: W11430050) |
|
Immediately | $ 35.87 | ||||
| 15 | W11406485 | Assembly, Console (white) |
|
Immediately | $ 374.27 | ||||
| 16 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 17 | W11680405 | Assembly, Fascia (Replaces: W11659194) |
|
$ 275.13 | |||||
| 18 | W10662472 | Collar, Lint Chute |
|
$ 77.87 | |||||
| 19 | W11627521 | Assembly, Encoder Mega (Replaces: W11557403) |
|
Immediately | $ 323.41 | ||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 21 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| W11555817 | Owners Manual |
|
- | ||||||
| W11565129 | Tech Sheet |
|
- | ||||||
| W11423864 | Quick Start Guide |
|
- |
