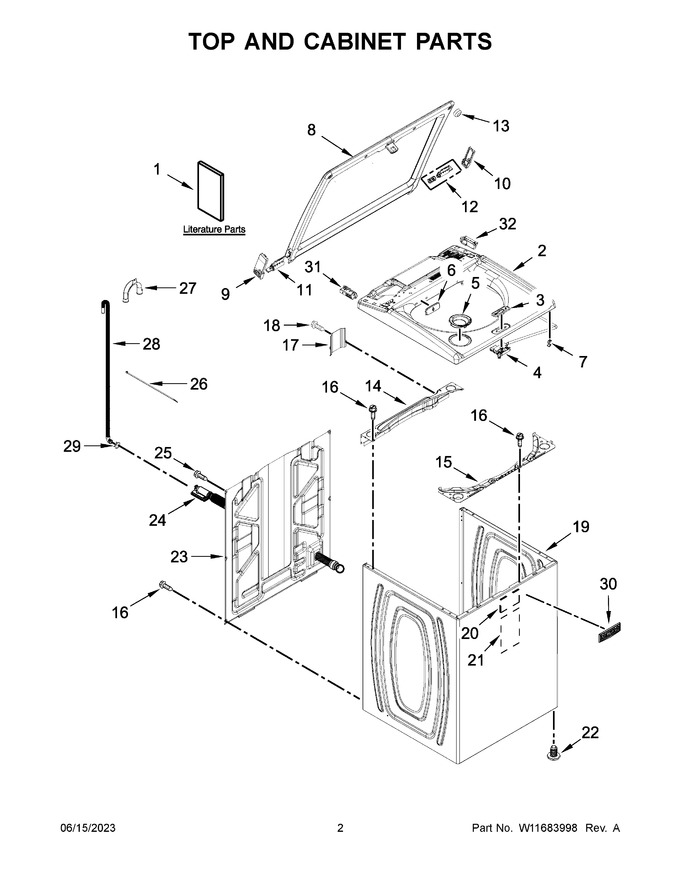

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11354658 | Owners Manual |
|
- | |||||
| 2 | W11513254 | Top (white) (Replaces: W11391478) |
|
$ 389.07 | |||||
| 3 | W11643703 | Bezel, Lid Lock (Replaces: W11403468) |
|
Immediately | $ 30.27 | ||||
| 4 | W11670519 | Latch, Lid Lock Assembly (Replaces: W11368616) |
|
Immediately | $ 75.62 | ||||
| 5 | W11234069 | Bezel, Bleach Dispenser (white) (Replaces: W11171193) |
|
$ 104.24 | |||||
| 6 | W11396263 | Bezel, Faucet |
|
$ 29.99 | |||||
| 7 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 8 | W11627419 | Lid (white) (Replaces: W11424116) |
|
Immediately | $ 385.83 | ||||
| 9 | W11627504 | Left Hinge, Cover (Replaces: W11424114) |
|
$ 23.17 | |||||
| 10 | W11627505 | Right Hinge, Cover (Replaces: W11424111) |
|
- | |||||
| 11 | W11627502 | Left Hinge, Damper (Replaces: W11554337) |
|
$ 62.71 | |||||
| 12 | W11627503 | Right Hinge Spring (Replaces: W11597671) |
|
$ 63.92 | |||||
| 13 | W11483871 | Bumper, Door |
|
- | |||||
| 14 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 15 | W11381327 | Channel, Top Front |
|
Immediately | $ 78.50 | ||||
| 16 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 17 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 18 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 19 | W10676680 | Cabinet (white) |
|
$ 406.86 | |||||
| 20 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 21 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 23.38 | ||||
| 22 | W11213957 | Foot Assembly, Leveling (Replaces: W11179235) |
|
Immediately | $ 14.24 | ||||
| 23 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 327.72 | ||||
| 24 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 35.78 | ||||
| 25 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 26 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 27 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 28 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| 29 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 30 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 31 | W11638180 | Hinge, Spacer Left (Replaces: W11391489) |
|
Immediately | $ 18.25 | ||||
| 32 | W11638181 | Hinge, Spacer Right (Replaces: W11391491) |
|
Immediately | $ 18.25 | ||||
| 1A | W11670064 | Energy Guide |
|
- | |||||
| 1B | W11436568 | Quick Start Guide |
|
- | |||||
| 1C | W11467155 | Tech Sheet |
|
- |
