Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

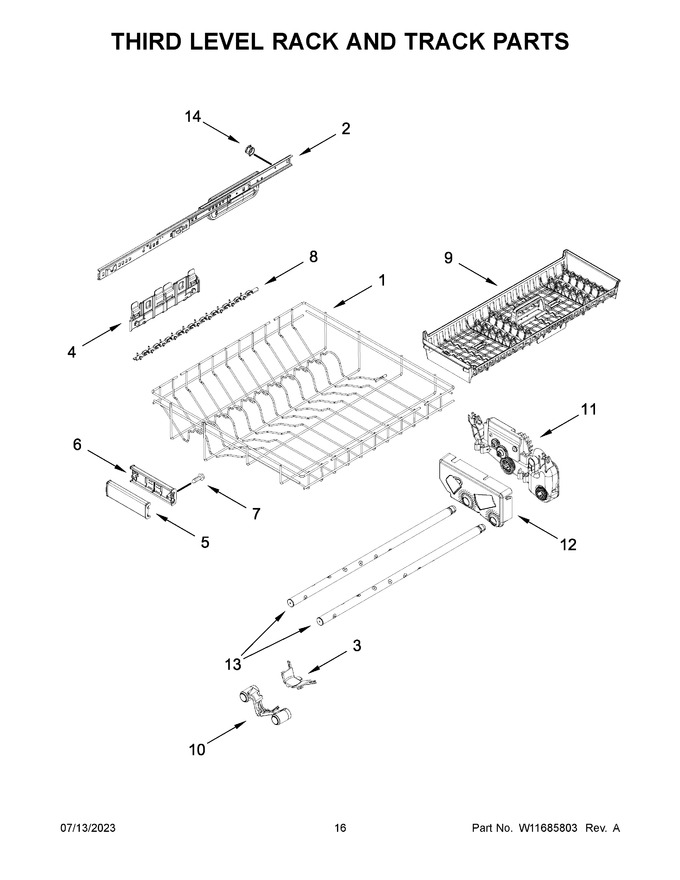

1	W11800206		Rack, Third Level   (Replaces: W11127727)			Immediately	$ 178.36
2	W11047813		Track Assembly (left Hand)				$ 181.15
3	W11573754		Hanger, Tube   (Replaces: W11184071)			Immediately	$ 19.43
4	W11130709		Mount, Dishrack				$ 75.56
5	W11392620		Handle, Dishrack Front				$ 119.47
6	W11268681		Handle, Dishrack Rear			Immediately	$ 116.36
7	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
8	W11202101		Cup Guard		Appelez-nous	-
9	W11820595		Silverware Tray   (Replaces: W11087823)				$ 68.12
10	W11568642		Bracket, Front Hanger   (Replaces: W10830577)			Immediately	$ 17.66
11	W11677712		Drive Box Assembly, Manifold   (Replaces: W10830523)				$ 129.50
12	W11101860		Cover, Wash Tube				$ 31.02
13	W11825823		Tube, Wash   (Replaces: W10831864)				$ 62.00
14	W11545286		Nut, Tub   (Replaces: W10920244)			Immediately	$ 15.48
2A	W11047815		Track Assembly (right Hand)				$ 181.15

    View Diagram in Separate Window       Print Part List
