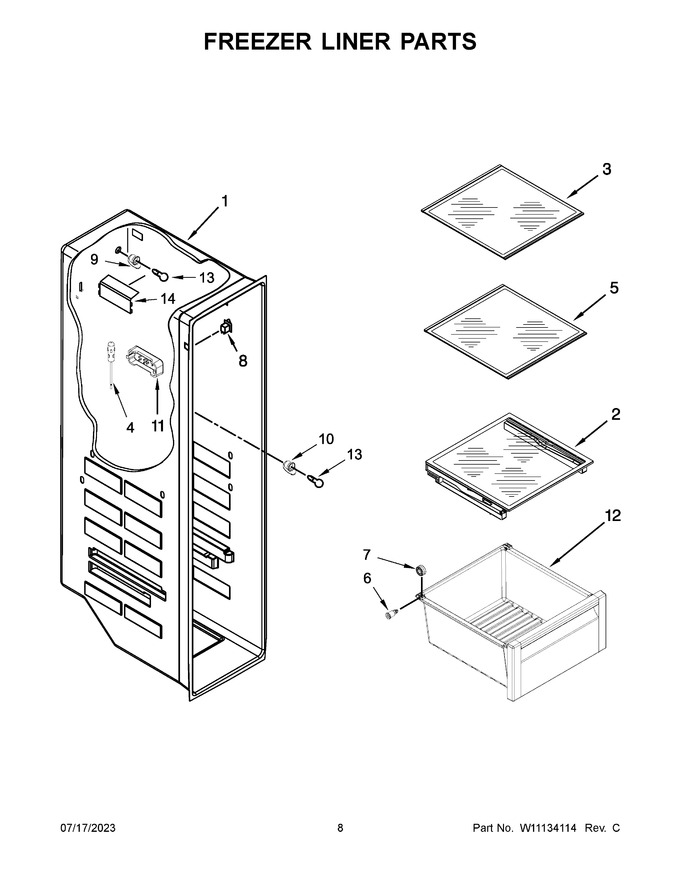

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W10644644 | Cover Assembly |
|
- | |||||
| 3 | WPW10675772 | Shelf Assembly, Upper (Replaces: W10675772) |
|
$ 159.82 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 5 | WPW10675773 | Shelf Assembly, Lower (Replaces: W10675773) |
|
$ 159.82 | |||||
| 6 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.90 | ||||
| 7 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 15.74 | ||||
| 8 | W11396033 | Switch, Rocker Arm (Replaces: W10656771) |
|
Immediately | $ 37.30 | ||||
| 9 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 10 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 106.16 | |||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 12 | W10839878 | Bin, Freezer |
|
- | |||||
| 13 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 43.24 | ||||
| 14 | WPW10269101 | Lens (Replaces: W10269101) |
|
$ 107.45 |
