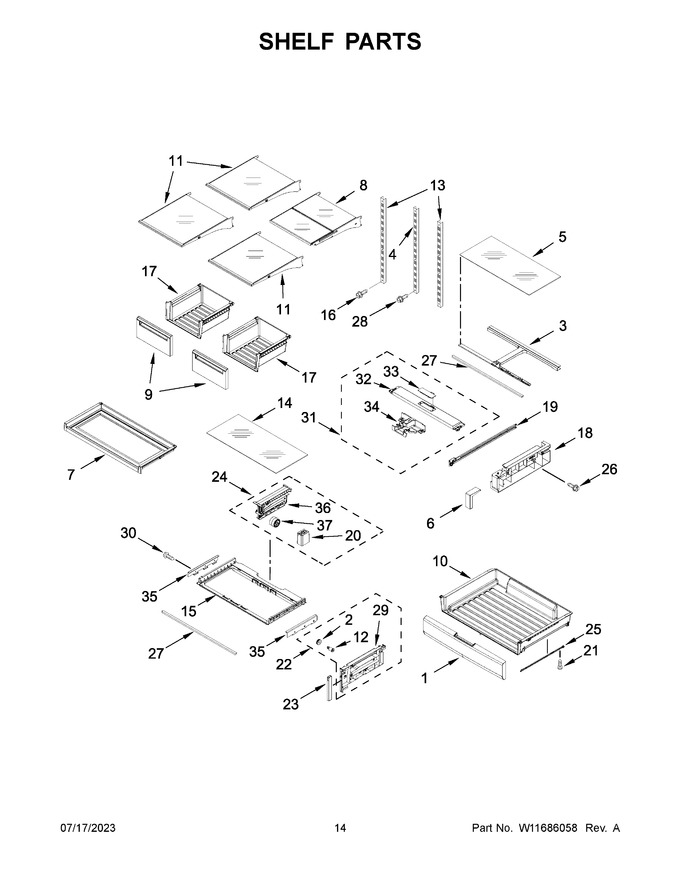

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10559660		Front, Pantry   (Replaces: W10559660)				$ 244.13
2	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 8.09
3	W11224265		Support, Pantry   (Replaces: W11124673)				$ 158.57
4	WPW10248516		Ladder, Center   (Replaces: W11658544)				$ 35.89
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 225.08
6	W10426775		Front, Sideplate (pantry) (left Hand)				$ 29.66
7	W11552036		Assembly, Metal Shelf Platter (includes Glass)   (Replaces: W11460454)		Appelez-nous	-
8	WPW10401836		Shelf, Tuck   (Replaces: W10401836)				$ 273.82
9	W11817014		Front, Crisper   (Replaces: W10524914)				$ 193.56
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 130.40
11	WPW10402687		Shelf, Fixed   (Replaces: W10402687)				$ 218.73
12	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
13	W11690684		Ladder, Side   (Replaces: W11658543)				$ 50.62
14	WPW10248578		Glass, Crisper   (Replaces: W10248578)				$ 331.71
15	W11133643		Cover, Crisper				$ 200.29
16	W11311945		Screw   (Replaces: 12990204)				$ 14.72
17	W10850129		Pan, Crisper   (Replaces: W10410352)			Immediately	$ 153.15
18	WPW10498906		Sideplate, Pantry (left Hand)   (Replaces: W10498906)				$ 132.04
19	W10508327		Roller Runner, Pantry (left Hand)				$ 301.07
20	W10530315		Support, Crisper				$ 17.00
21	WP8281136		Screw   (Replaces: 8281136)				$ 7.30
22	W11763411		Sideplate, Crisper (left Hand)   (Replaces: W11315531)				$ 64.80
23	W10488299		Front, Sideplate (crisper)				$ 36.07
24	W10549606		Assembly, Crisper Track				$ 123.20
25	W10508330		Runner, Pantry Roller (left Hand)		Appelez-nous	-
26	W10185612		Screw				$ 7.08
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 134.05
28	W10423560		Screw		Appelez-nous	-
29	W11315181		Plate, Crisper (left Hand)				$ 80.13
30	W10847999		Screw				$ 13.47
31	W10554737		Assembly, Front Pantry Cover		Appelez-nous	-
32	W10525200		Cover, Pantry Top		Appelez-nous	-
33	W10554281		Housing, Pantry Temperature Control		Appelez-nous	-
34	W10512596		Knob, Pantry Temperature Control		Appelez-nous	-
35	W11133647		Rail, Side (left Hand)				$ 139.56
36	W10530307		Track, Center				$ 89.27
37	W10248789		Roller, Center				$ 19.37
18A	W11225684		Sideplate, Pantry (right Hand)   (Replaces: W11124810)				$ 98.97
19A	W10508326		Roller Runner, Pantry (right Hand)				$ 311.48
22A	W11759114		Sideplate, Crisper (right Hand)   (Replaces: W11315533)				$ 64.80
25A	W10508328		Runner, Pantry Roller (right Hand)		Appelez-nous	-
29A	W11315180		Plate, Crisper (right Hand)				$ 24.96
35A	W11133648		Rail, Side (right Hand)				$ 139.56
6A	W10356979		Front, Sideplate (pantry) (right Hand)		Appelez-nous	-
