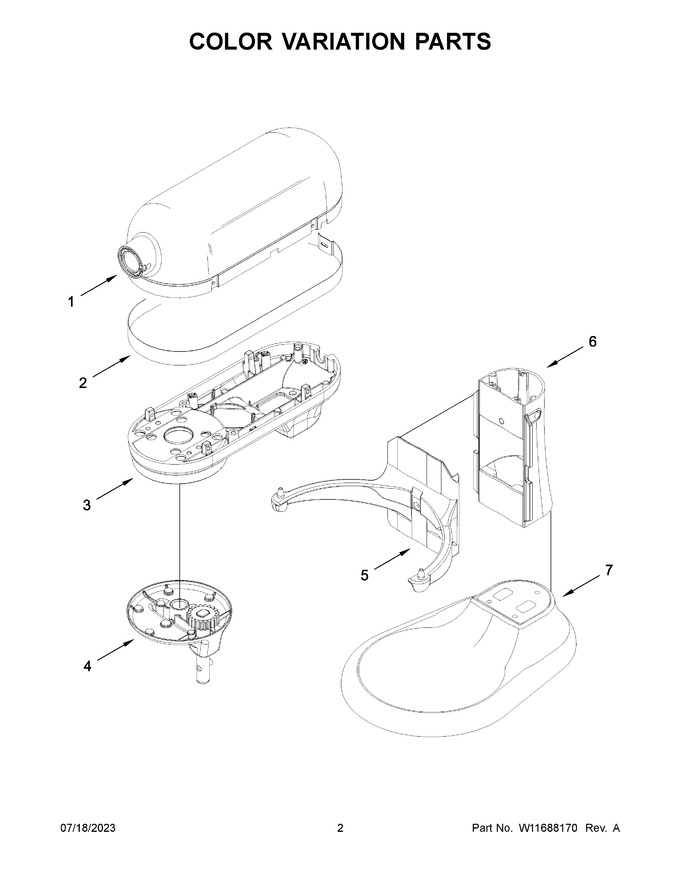

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 2 | W11649200 | Trim Band (bright Aluminum) (Replaces: W11420352) |
|
- | |||||
| 3 | W11520142 | Lower Gearcase (empire Red) |
|
- | |||||
| 4 | W11595416 | Planetary (silent Silver) |
|
$ 85.73 | |||||
| 5 | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 6 | 9705324 | Column And Pins (empire Red) |
|
- | |||||
| 7 | 9705348 | Base And Foot Assembly (empire Red) |
|
- |
