SELECT A DIAGRAM

01 - Cover Sheet


02 - Motor And Drive Parts


03 - Frame Parts


04 - Powerscrew And Ram Parts

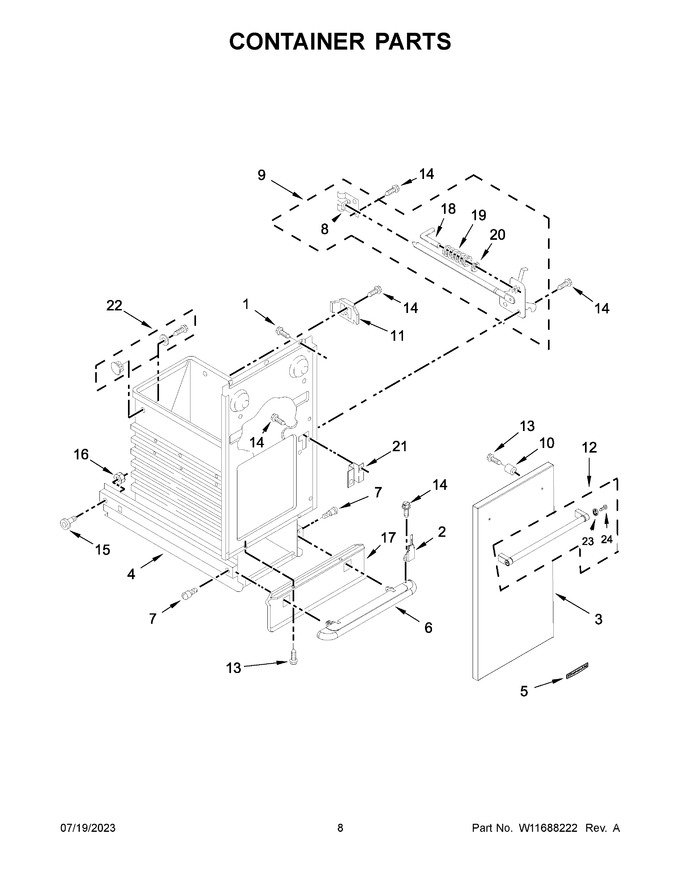

05 - Container Parts


06 - Panel And Control Parts


07 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
2	WPW10451270		Actuator Assembly (actuator Switch)   (Replaces: W10242549)				$ 103.67
3	W10714558		Panel, Container Front (stainless)				$ 363.59
4	WPW10451276		Container Assembly   (Replaces: 9870934)				$ 510.52
5	W10909682		Nameplate (nameplate)   (Replaces: W10518673)			Immediately	$ 76.20
6	W11636605		Pedal, Foot (black)   (Replaces: W11304291)				$ 65.88
7	WP780263		Screw   (Replaces: 780263)				$ 8.34
8	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
9	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
10	WP9871563		Spacer, Handle   (Replaces: 9871563)				$ 11.25
11	9871125		Actuator, Safety Switch				$ 29.37
12	W10896972		Handle Assembly (includes Item 13) (stainless)   (Replaces: W11456293)				$ 193.40
13	W10661526		Screw				$ 14.05
14	WP489478		Screw   (Replaces: W10001260)				$ 8.18
15	WP9871602		Bearing, Container Roller   (Replaces: 9871602)				$ 13.87
16	WP776356		Locknut   (Replaces: 776356)				$ 8.53
17	W11696574		Guard, Toe (black)   (Replaces: W10242557)				$ 142.26
18	W11705836		Pin, Latch   (Replaces: 776654)		Appelez-nous	-
19	775736		Spring, Latch				$ 93.80
20	W11679168		Ring, E   (Replaces: 775735)		Appelez-nous	-
21	775665		Plate, Latch				$ 62.39
22	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
23	W10846207		Medallion, Handle   (Replaces: W10551026)			Immediately	$ 23.14
24	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95

    View Diagram in Separate Window       Print Part List
