View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

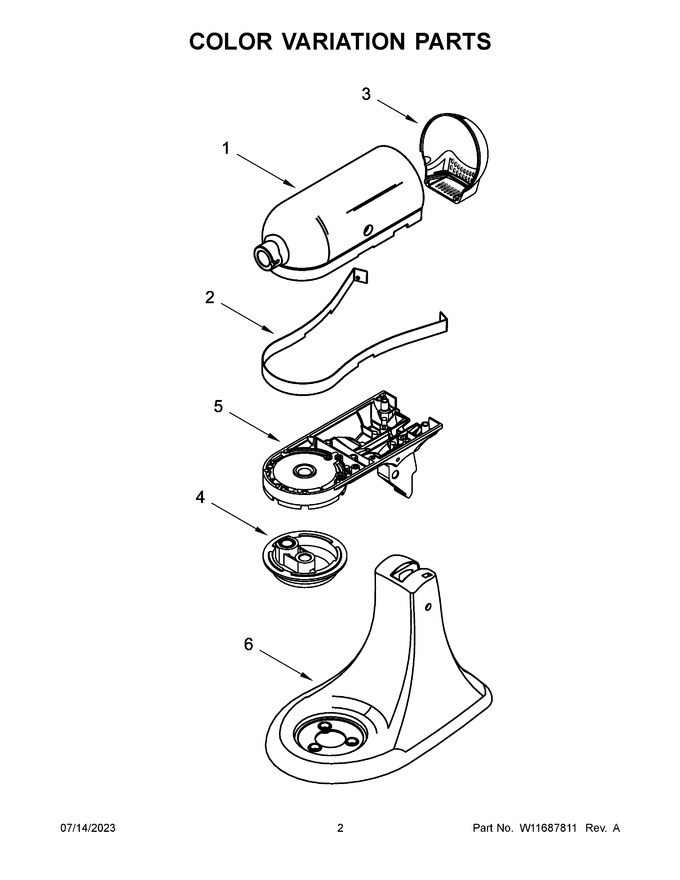

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11601739 | Motor Housing (black Matte) |
|
- | |||||
| 2 | W11171098 | Trim Band (black) (Replaces: W11100718) |
|
- | |||||
| 3 | W11170239 | End Cover (black Matte) (Replaces: W10885707) |
|
- | |||||
| 4 | W11170306 | Planetary (black Matte) (Replaces: W10885706) |
|
$ 26.56 | |||||
| 5 | W11170233 | Lower Gearcase (black Matte) (Replaces: W10885699) |
|
- | |||||
| 6 | W11185575 | Pedestal, W/feet And Headlock (black Matte) |
|
- | |||||
| 1A | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 1B | W11610705 | Motor Housing (kyoto Glow) |
|
- | |||||
| 1C | W11601712 | Motor Housing (mineral Water Blue) |
|
- | |||||
| 1D | W11601672 | Motor Housing (onyx Black) |
|
$ 90.25 | |||||
| 1E | W11603687 | Motor Housing (pistachio) |
|
$ 100.30 | |||||
| 3A | 24025322 | End Cover (empire Red) |
|
- | |||||
| 3B | W11357462 | End Cover (kyoto Glow) |
|
- | |||||
| 3C | W11444606 | End Cover (mineral Water Blue) |
|
- | |||||
| 3D | 24025314 | End Cover (onyx Black) |
|
- | |||||
| 3E | 9706841 | End Cover (pistachio) |
|
- | |||||
| 4A | 24028623 | Planetary (empire Red) |
|
- | |||||
| 4B | W11357469 | Planetary (kyoto Glow) |
|
- | |||||
| 4C | W11444675 | Planetary (mineral Water Blue) |
|
- | |||||
| 4D | 24028616 | Planetary (onyx Black) |
|
- | |||||
| 4E | 9706839 | Planetary (pistachio) |
|
- | |||||
| 5A | 24035091 | Lower Gearcase (empire Red) |
|
- | |||||
| 5B | W11357465 | Lower Gearcase (kyoto Glow) |
|
- | |||||
| 5C | W11444671 | Lower Gearcase (mineral Water Blue) |
|
- | |||||
| 5D | 24035056 | Lower Gearcase (onyx Black) |
|
- | |||||
| 5E | 9706832 | Lower Gearcase (pistachio) |
|
$ 66.91 | |||||
| 6A | 3184280 | Pedestal, W/feet And Headlock (empire Red) |
|
- | |||||
| 6B | W11357472 | Pedestal, W/feet And Headlock (kyoto Glow) |
|
- | |||||
| 6C | W11521031 | Pedestal, W/feet And Headlock (mineral Water Blue) |
|
- | |||||
| 6D | W11205080 | Pedestal, W/feet And Headlock (onyx Black) (Replaces: 3184275) |
|
- | |||||
| 6E | 9709637 | Pedestal, W/feet And Headlock (pistachio) |
|
- |
