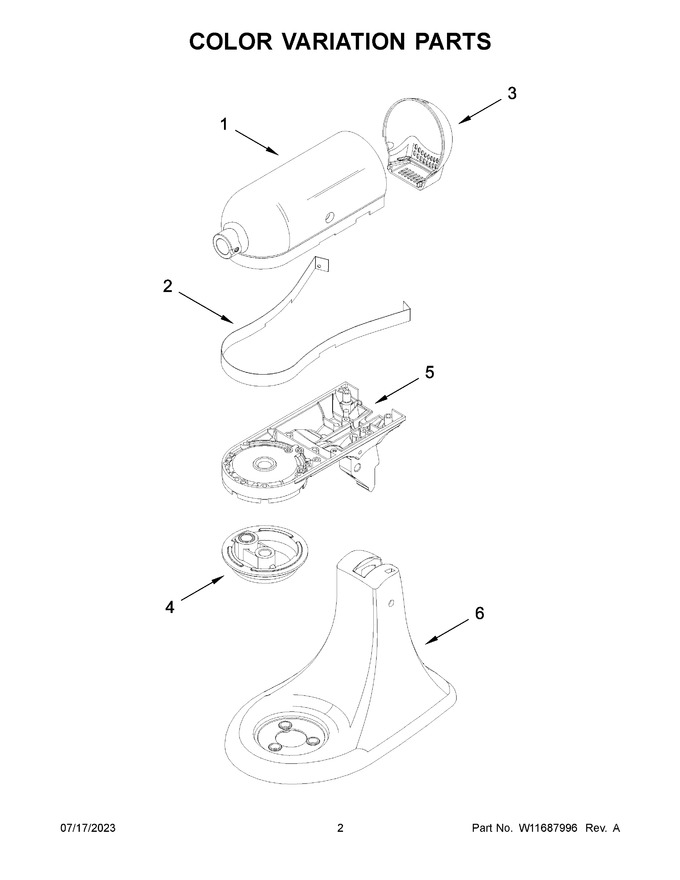

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 2 | W11188411 | Trim Band (platinum) (Replaces: W10863292) |
|
- | |||||
| 3 | 24025322 | End Cover (empire Red) |
|
- | |||||
| 4 | 24028623 | Planetary (empire Red) |
|
- | |||||
| 5 | 24035091 | Lower Gearcase (empire Red) |
|
- | |||||
| 6 | 3184280 | Pedestal, W/feet And Headlock (empire Red) |
|
- |
