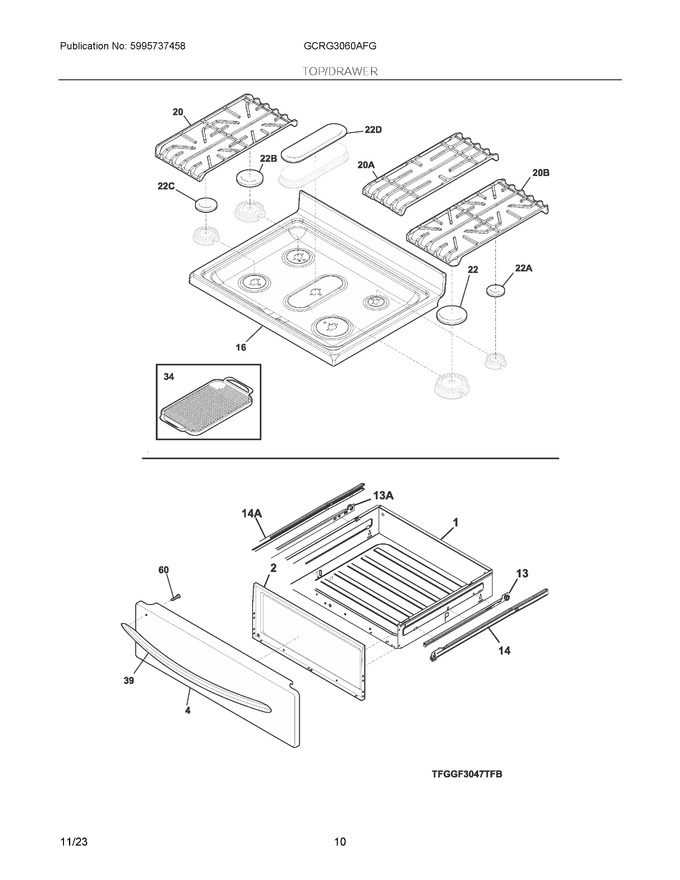

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807082503		Drawer-utility Raw With Stop, 1		Appelez-nous	-
2	5304527988		Liner, Drawer			Immediately	$ 29.49
4	5304517477		Panel, Drawer, Stainless				$ 202.73
13	316415000		Glide, Warmer, Inner Rh				$ 65.36
16	316610014		Main Top, Black			Immediately	$ 281.14
20	808754701		Grate, Black, Lh				$ 214.99
22	5304527846		Cap-burner, 17k, Black, Matte, 3mm				$ 31.17
34	5304495353		Griddle			Immediately	$ 185.38
39	316554010		Handle, Door/drawer, Stainless			Immediately	$ 187.16
60	5303288572		Screw-handle Mtg		Appelez-nous	-
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 65.36
20A	808754801		Grate, Black, Center				$ 218.93
20B	808754702		Grate, Black, Rh				$ 214.99
22A	5304524590		Cap-burner, 5a, Black, Matte, 3mm				$ 21.06
22B	5304527845		Cap-burner, 14k, Black, Matte, 3mm				$ 25.28
22C	5304508442		Cap-burner, 9.5k, Black, Matte, 3mm   (Replaces: 5304527843)			Immediately	$ 40.61
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 80.33
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55

    View Diagram in Separate Window       Print Part List
