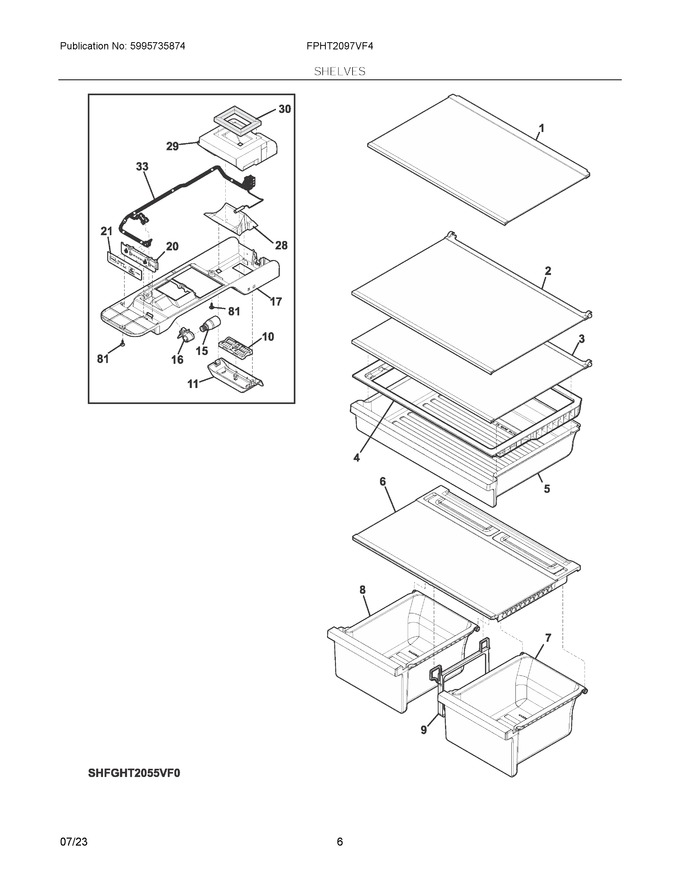

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304528843 | Shelf Assembly, Freezer, Glass, W/trim |
|
Immediately | $ 72.47 | ||||
| 2 | 5304534453 | Shelf-assy, Ff Glass Gallery, 2 (Replaces: 5304534418) |
|
$ 74.72 | |||||
| 3 | 5304534420 | Shelf Assy-glass 20'sd Fw Deli, 3 |
|
- | |||||
| 4 | 5304524136 | Carriage, Deli Drawer, Fill Width |
|
$ 71.01 | |||||
| 5 | 5304528867 | Drawer, Deli, Full Width |
|
Immediately | $ 119.85 | ||||
| 6 | 5304528862 | Cover Assembly, Crisper, Glass, Complete |
|
$ 214.87 | |||||
| 7 | 5304528861 | Pan Assembly, Crisper, Rh, W/rollers |
|
$ 143.85 | |||||
| 8 | 5304528891 | Pan Assembly, Crisper, Lh, W/rollers |
|
$ 140.41 | |||||
| 9 | 5304528899 | Support, Crisper Cover |
|
Immediately | $ 33.71 | ||||
| 10 | FRGPAAF1 | Frig Pureair Af1 Air Filter |
|
Immediately | $ 33.08 | ||||
| 11 | A17635101 | Housing, Air Filter |
|
Immediately | $ 7.23 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 44.66 | ||||
| 16 | 5304522315 | Socket, Led Light |
|
Immediately | $ 11.80 | ||||
| 17 | 5304528923 | Housing, Control Box |
|
Immediately | $ 173.59 | ||||
| 20 | 5303918897 | Pc Board, Assembly, User Interface (Replaces: 5304528893) |
|
Immediately | $ 106.00 | ||||
| 21 | 5303918897 | Overlay, Ui Board (Replaces: 5304528885) |
|
Immediately | $ 106.00 | ||||
| 28 | 5304522317 | Diffuser, Control Box, Bottom |
|
$ 18.60 | |||||
| 29 | 5304522318 | Diffuser, Control Box, Top |
|
$ 18.54 | |||||
| 30 | 5304520493 | Seal, Air Duct, Top |
|
Immediately | $ 20.22 | ||||
| 33 | 5304528924 | Harness, Wiring, Control Box, W/temp Sensor |
|
Immediately | $ 110.39 | ||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 |
