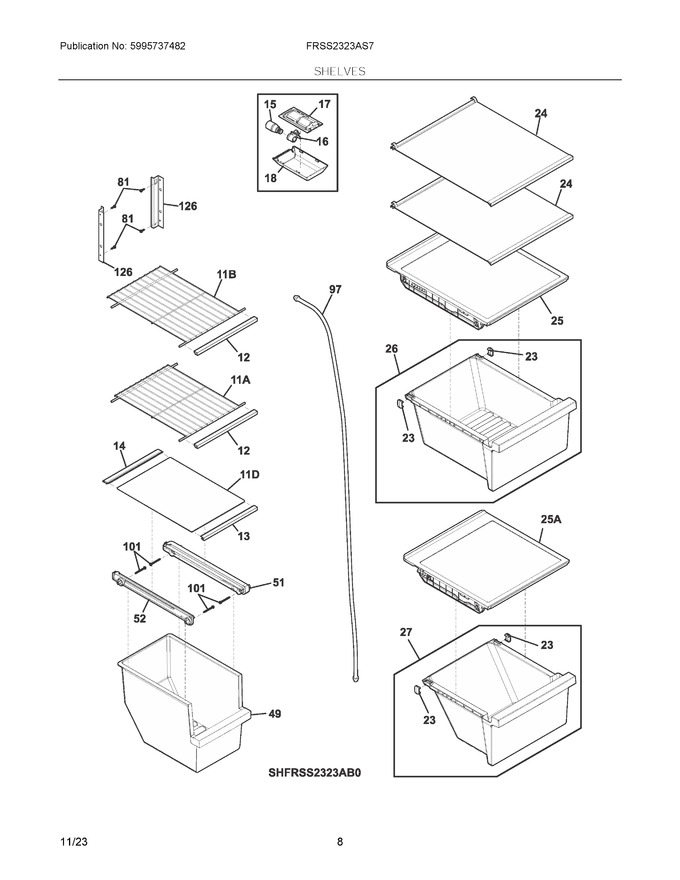

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 5304527181 | Trim, Wire Shelf, White |
|
$ 13.48 | |||||
| 13 | 5304527183 | Trim, Glass Shelf, Freezer, Front |
|
$ 110.39 | |||||
| 14 | 5304527129 | Trim, Freezer Shelf, Rear |
|
$ 17.69 | |||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 44.66 | ||||
| 16 | 5304522315 | Socket, Led Light |
|
Immediately | $ 11.80 | ||||
| 17 | 5304526001 | Housing, Light, Fresh Food |
|
$ 13.48 | |||||
| 18 | 5304526002 | Lens, Light, Fresh Food |
|
$ 25.28 | |||||
| 23 | 5304525911 | Clip, Slide, Crisper |
|
Immediately | $ 11.80 | ||||
| 24 | 5304527174 | Shelf Assembly, Glass, White |
|
Immediately | $ 145.77 | ||||
| 25 | 140116199146 | Crisper Cover, Assembly, Glass, Upper, W/trim-gasket (Replaces: 5304527178) |
|
- | |||||
| 26 | 5304535373 | Crisper Pan, Upper, W/slide Clips (Replaces: 5304527211) |
|
$ 127.67 | |||||
| 27 | 5304527212 | Crisper Pan, Lower, W/slide Clips |
|
$ 193.73 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 49 | 5304527154 | Basket, Freezer, Sliding |
|
$ 87.02 | |||||
| 51 | 240343002 | Hanger-basket, Rh |
|
$ 72.47 | |||||
| 52 | 240343102 | Hanger-basket, Lh |
|
$ 77.52 | |||||
| 97 | 242220134 | Tube, Water, 91.4", Natural, Filter Base To, Secondary Valve |
|
$ 24.43 | |||||
| 101 | 218493101 | Screw, Hex Washer Head, 8-18ab X 1-3/4 |
|
$ 14.96 | |||||
| 126 | 241674401 | Channel, Auger Mtg, Lh |
|
$ 52.76 | |||||
| 11A | 5304532465 | Shelf, Fixed, Freezer (Replaces: 241657501) |
|
$ 60.11 | |||||
| 11B | 5304532464 | Shelf, Fixed Upper, Freezer (Replaces: 241657503) |
|
- | |||||
| 11D | 241992914 | Shelf-freezer, Glass, Lower |
|
$ 57.49 | |||||
| 126A | 241674402 | Channel, Auger Mtg, Rh |
|
$ 48.04 | |||||
| 25A | 5304535417 | Crisper Cover, Assembly, Glass, Lower, W/trim-gasket (Replaces: 5304527179) |
|
$ 91.29 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 |
