SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

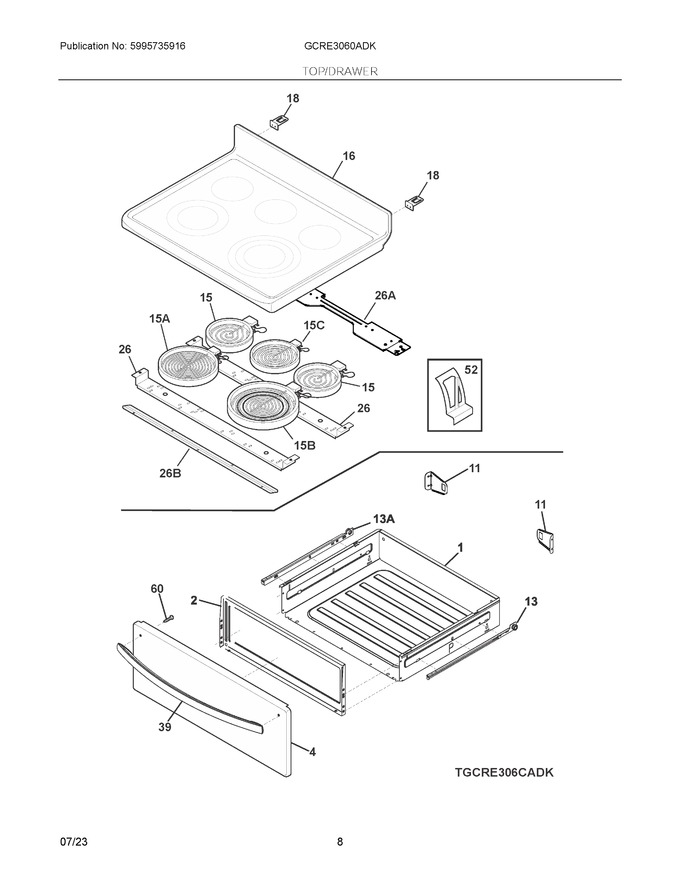

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316403008		Drawer-utility With Stop, 1		Appelez-nous	-
2	5304527989		Liner, Drawer				$ 32.03
4	5304516891		Panel, Drawer, Dark Stainless				$ 175.32
11	5304517906		Bracket, Rear Support, (2)				$ 12.64
13	316415000		Glide, Warmer, Inner Rh				$ 65.36
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	5304513155		Smoothtop, Assembly, Black				$ 679.80
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
26	5304512926		Channel, Element Support				$ 51.35
39	316554009		Handle, Door/drawer, Black Stainless, W/spacers				$ 210.45
43	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
52	316461700		Clip, Element Mtg				$ 13.39
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 65.36
15A	5304533520		Element, Radiant, 9/6", Top, 3000w			Immediately	$ 100.15
15B	318297810		Element, Triple, 1200/2000/3000w, 6"/9"/12			Immediately	$ 396.15
15C	5304521951		Element, Warmer, 100 W			Immediately	$ 71.62
26A	316498200		Bracket-support, Chassis, Aluminum, 11				$ 58.14
26B	316607600		Bracket, Chassis Support, Front				$ 58.14
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304525258		Harness, Surface, R17				$ 191.28
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.53

    View Diagram in Separate Window       Print Part List
