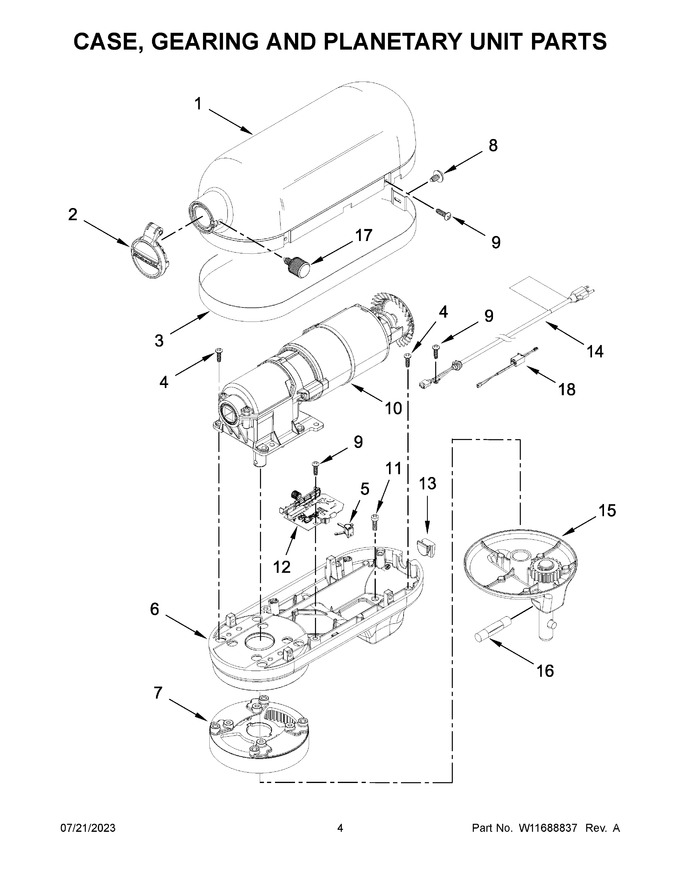

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI04492D1CA31AFBFFD415C296C74FF36B		Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
2	WPW10395280		Cap, Attachment Hub (satin Chrome)   (Replaces: W10395280)				$ 30.44
3	ARIAF8C99319F4C5388B29C3E418839765F		Trim Band (refer To Color Variation Parts Page)		Appelez-nous	-
4	W10914506		Screw   (Replaces: W10351843)				$ 4.59
5	WPW10305968		Holder, Control   (Replaces: W10305968)				$ 4.33
6	ARI8B12F47A83C5A0C26A834B1BD94F178F		Lower Gearcase (refer To Color Variation Parts Page)		Appelez-nous	-
7	W11672011		Assembly, Ring Gear And Plate   (Replaces: W11518734)		Appelez-nous	-
8	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
9	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
10	W11246392		Motor, 100 Volt   (Replaces: W10517933)		Appelez-nous	-
11	W10913677		Screw   (Replaces: 3400200)				$ 4.64
12	W11759043		Control, 120 Volt   (Replaces: W10599478)				$ 152.71
13	W10417201		Clip, Plug		Appelez-nous	-
14	W11690667		Cord, Power (black)   (Replaces: W11197190)		Appelez-nous	-
15	ARI2C54D97F5D296EF7DCEE4AED6DC7F137		Planetary Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
16	WPW10234531		Pin, Groove   (Replaces: W10234531)			Immediately	$ 5.29
17	WPW10360791		Thumb Screw (black)   (Replaces: W10360791)				$ 10.68
18	W11319634		Filter   (Replaces: W10703126)		Appelez-nous	-
