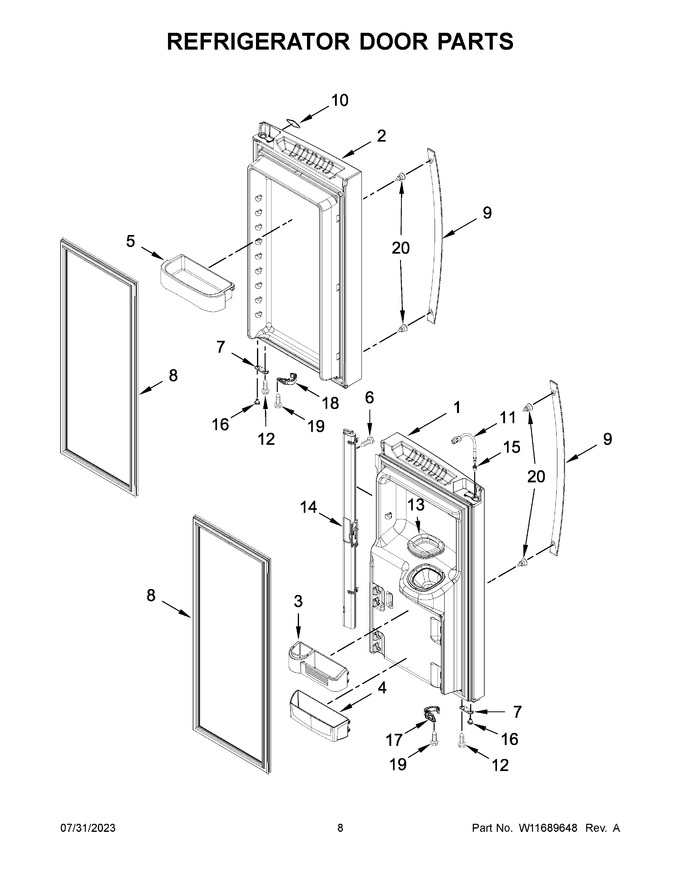

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10862413 | Door, Refrigerator Left Hand (white) (Replaces: W10859353) |
|
$ 1,179.18 | |||||
| 2 | W10862412 | Door, Refrigerator Right Hand (white) (Replaces: W10859352) |
|
$ 1,153.27 | |||||
| 3 | WPW10323808 | Bucket, Upper (Replaces: W10323808) |
|
Immediately | $ 81.50 | ||||
| 4 | WPW10212139 | Bucket, Small (Replaces: W10212139) |
|
Immediately | $ 78.54 | ||||
| 5 | WPW10224961 | Bucket, Gallon (Replaces: W10224961) |
|
Immediately | $ 95.08 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 8 | W11396037 | Gasket, Door (white) (Replaces: W10830057) |
|
$ 312.66 | |||||
| 9 | W11127179 | Handle, Door (white) (Replaces: W11101973) |
|
Immediately | $ 190.44 | ||||
| 10 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 11 | W11677733 | Waterline, Door (Replaces: W11431179) |
|
$ 85.79 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722815W | Mullion, Door (white) (Replaces: 12722815W) |
|
$ 338.76 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 17 | W10918118 | Latch, Door Closer Left Hand (white) (Replaces: W10833740) |
|
$ 17.01 | |||||
| 18 | W10918120 | Latch, Door Closer Right Hand (white) (Replaces: W10833738) |
|
Immediately | $ 17.01 | ||||
| 19 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 20 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 14A | 12722815B | Mullion, Door (black) |
|
$ 303.72 | |||||
| 16A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 17A | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 18A | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 1A | W10862411 | Door, Refrigerator Left Hand (black) (Replaces: W10859351) |
|
$ 1,172.30 | |||||
| 2A | W10862410 | Door, Refrigerator Right Hand (black) (Replaces: W10859350) |
|
$ 1,207.68 | |||||
| 7A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 8A | W10830055 | Gasket, Door (grey) |
|
Immediately | $ 229.10 | ||||
| 9A | W11123097 | Handle, Door (black) (Replaces: W11101974) |
|
$ 190.44 |
