SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts

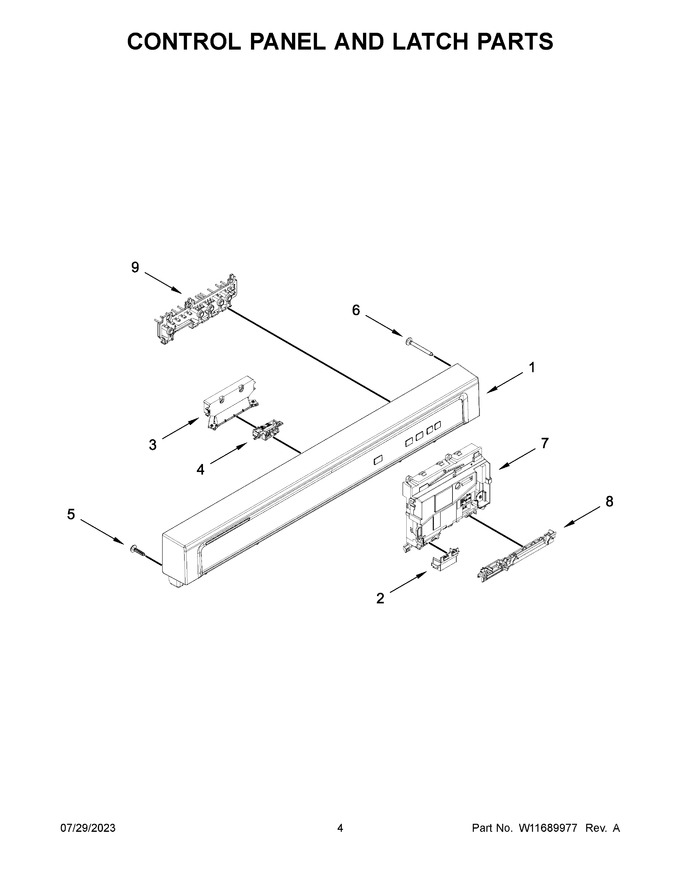

03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11728574		Console Assembly (includes Insert) (black)   (Replaces: W11546167)			Immediately	$ 328.05
2	W11305293		Box, Connector   (Replaces: W10825638)			Immediately	$ 277.81
3	W11647415		Handle, Upper   (Replaces: W11549367)				$ 23.76
4	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10574864)			Immediately	$ 34.18
5	WPW10213953		Screw (long)   (Replaces: W10711884)			Immediately	$ 7.55
6	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
7	W11683482		Control, Electronic   (Replaces: W11665215)			Immediately	$ 344.40
8	W11305293		Brace, Connector   (Replaces: W10825369)			Immediately	$ 277.81
9	W11647416		Light Pipe W/ Integrated Button Tree   (Replaces: W11549368)			Immediately	$ 24.06
1A	W11647661		Console Assembly (includes Insert) (white)   (Replaces: W11546168)			Immediately	$ 328.22
1B	W11728570		Console Assembly (includes Insert) (biscuit)   (Replaces: W11546169)				$ 375.56
1C	W11647667		Console Assembly (includes Insert) (stainless)   (Replaces: W11546171)			Immediately	$ 404.82

    View Diagram in Separate Window       Print Part List
