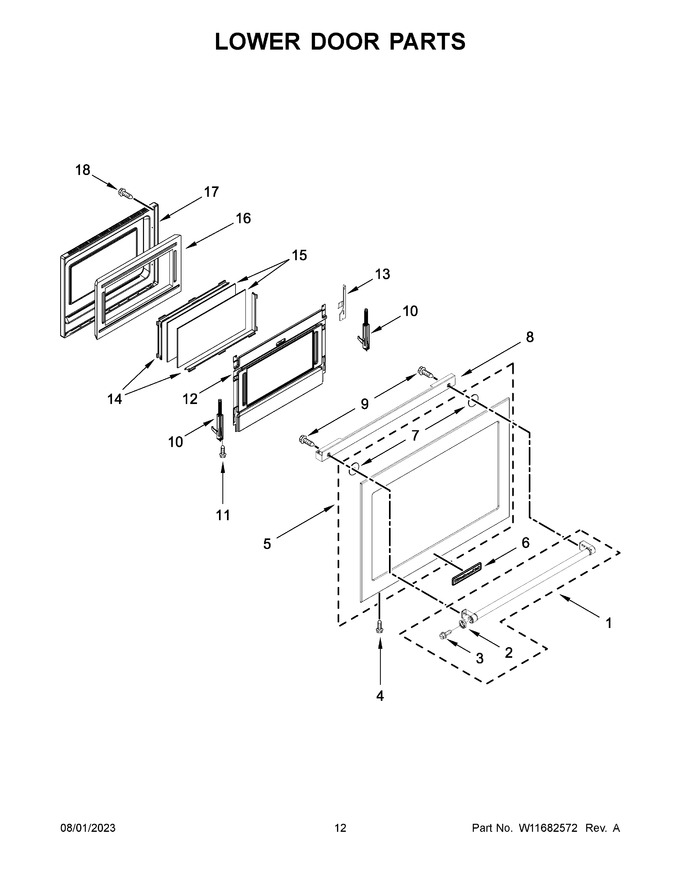

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11305107		Assembly, Handle (black)				$ 194.60
2	W10846207		Medallion, Handle   (Replaces: W10551026)			Immediately	$ 23.14
3	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95
4	W11690596		Screw With Washer   (Replaces: W10284411)				$ 23.31
5	W11763632		Assembly, Door (stainless)   (Replaces: W11493748)				$ 1,038.54
6	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 76.20
7	7109P08460		Washer, Fiber		Appelez-nous	-
8	W10575689		Bracket, Handle				$ 145.99
9	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
10	WPW10335434		Hinge, Door (left)   (Replaces: W10335434)			Immediately	$ 102.90
11	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
12	W10340464		Retainer, Insulation				$ 289.80
13	WPW10272329		Receiver (left)   (Replaces: W10272329)				$ 81.11
14	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 197.39
15	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 141.95
16	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 106.43
17	WPW10292008		Lining, Door   (Replaces: W10292008)				$ 346.35
18	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
10A	WPW10335433		Hinge, Door (right)   (Replaces: W10335433)				$ 104.99
13A	WPW10272328		Receiver (right)   (Replaces: W10272328)				$ 90.04

    View Diagram in Separate Window       Print Part List
