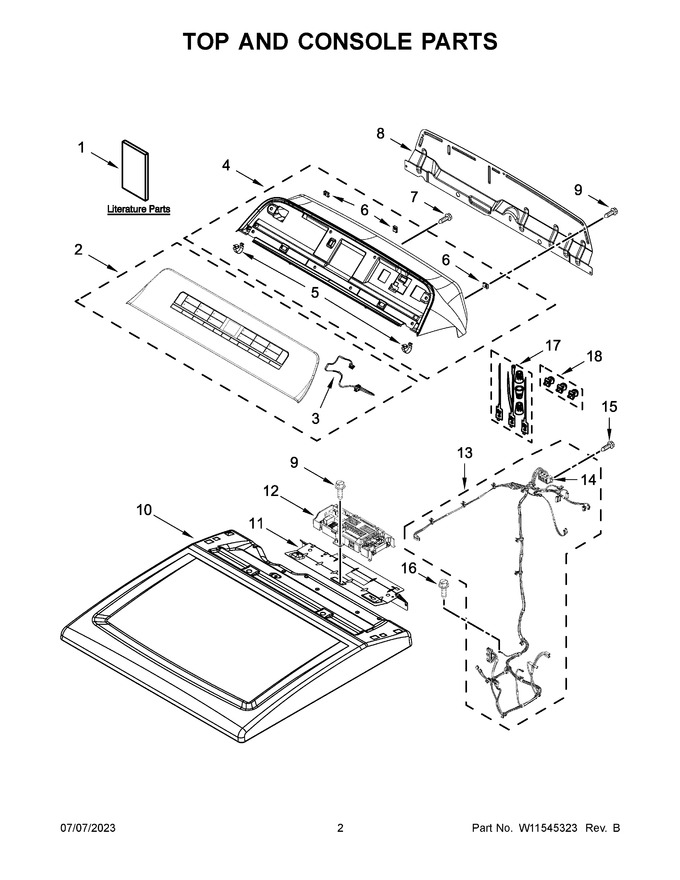

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Dryer Heating Parts-electric
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11555818 | Installation Instructions |
|
- | |||||
| 2 | W11626080 | Console Fascia Assembly (Replaces: W11562730) |
|
Immediately | $ 557.13 | ||||
| 3 | W11164312 | Harness, User Interface (hmi) |
|
$ 159.98 | |||||
| 4 | W11401363 | Console (white) (Replaces: W11178519) |
|
$ 346.71 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.74 | |||||
| 7 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 8 | W11433112 | Panel, Rear Console |
|
$ 62.93 | |||||
| 9 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 10 | W11641121 | Top (white) (Replaces: W10260246) |
|
Immediately | $ 204.86 | ||||
| 11 | W11431865 | Bracket, Electronic Control |
|
$ 54.51 | |||||
| 12 | W11782441 | Appliance Control Unit (acu) (Replaces: W11577203) |
|
Immediately | $ 281.62 | ||||
| 13 | W11700548 | Harness, Main Wiring (Replaces: W11164041) |
|
- | |||||
| 14 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 23.02 | |||||
| 15 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 16 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.76 | |||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 100.99 | ||||
| 18 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 47.37 | ||||
| 10A | W11641122 | Top (chrome Shadow) (Replaces: W10458665) |
|
$ 256.02 | |||||
| 1A | W11550670 | Quick Start Guide |
|
- | |||||
| 4A | W11401366 | Console (chrome Shadow) (Replaces: W11178520) |
|
Immediately | $ 360.59 |
