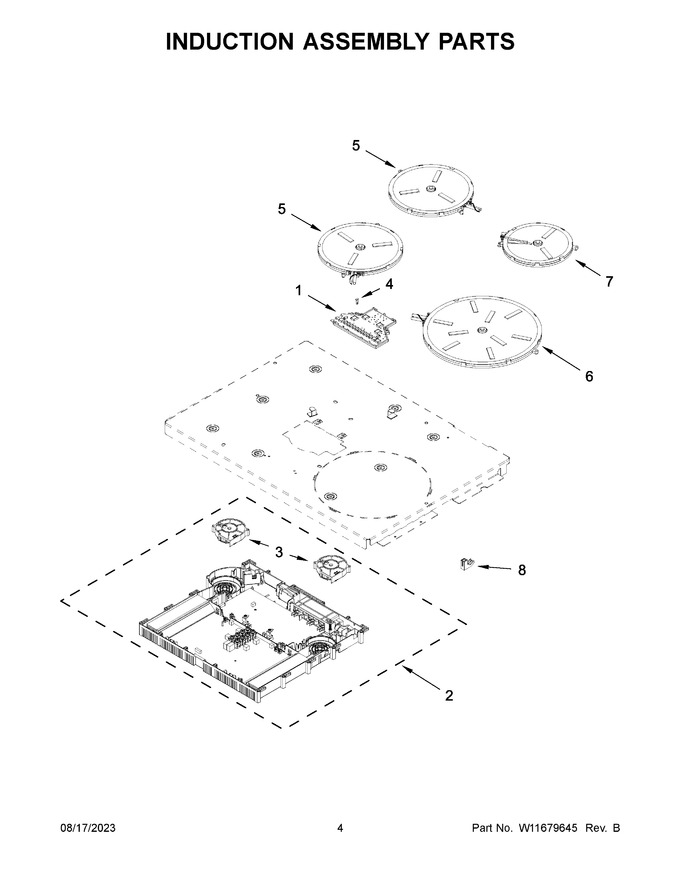

03 - Induction Assembly Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11689156		User, Interface   (Replaces: W11683059)				$ 531.93
2	W11689155		Assembly, Induction Module   (Replaces: W11683057)			Immediately	$ 1,579.74
3	W11687652		Fan, Cooling   (Replaces: W11683058)				$ 378.09
4	W11689156		Locking Pin, User Interface   (Replaces: W11683061)				$ 531.93
5	W11689152		Element, Induction (left Front And Left Rear)   (Replaces: W11683055)			Immediately	$ 307.03
6	W11689153		Element, Induction (right Front)   (Replaces: W11683054)			Immediately	$ 313.33
7	W11689154		Element, Induction (right Rear)   (Replaces: W11683056)				$ 294.34
8	W11689160		Strain Relief, Cable   (Replaces: W11683063)		Appelez-nous	-
NI	W11689158		Harness, Ui To Module   (Replaces: W11683062)				$ 376.78
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11689159		Harness, Induction Cooktop Pan, Induction (upper)   (Replaces: W11615923)				$ 83.15
