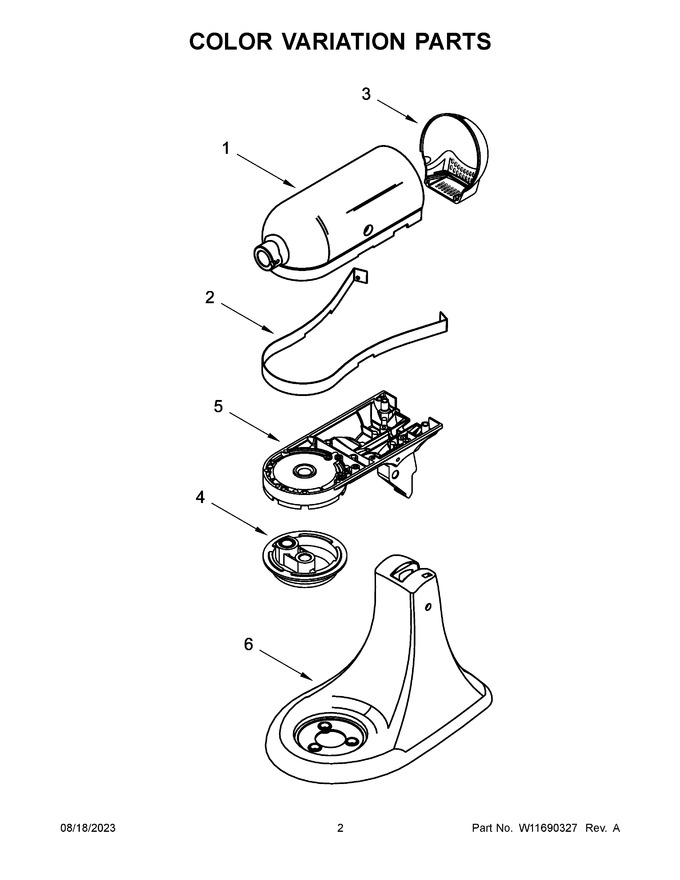

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11601739 | Motor Housing (black Matte) |
|
- | |||||
| 2 | W11433197 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W11170239 | End Cover (black Matte) (Replaces: W10885707) |
|
- | |||||
| 4 | W11170306 | Planetary (black Matte) (Replaces: W10885706) |
|
$ 26.56 | |||||
| 5 | W11170233 | Lower Gearcase (black Matte) (Replaces: W10885699) |
|
- | |||||
| 6 | W11185575 | Pedestal, W/feet And Headlock (black Matte) |
|
- | |||||
| 1A | W11604098 | Motor Housing (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 1B | W11605631 | Motor Housing (candy Apple Red) |
|
- | |||||
| 1C | W11604153 | Motor Housing (mango/matcha) |
|
- | |||||
| 3A | W11209472 | End Cover (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 3B | WPW10239110 | End Cover (candy Apple Red) (Replaces: W10239110) |
|
$ 28.91 | |||||
| 3C | W11431671 | End Cover (matcha) |
|
- | |||||
| 4A | W11209470 | Planetary (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 4B | W10239112 | Planetary (candy Apple Red) |
|
$ 45.31 | |||||
| 4C | W11431678 | Planetary (matcha) |
|
- | |||||
| 5A | W11209465 | Lower Gearcase (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 5B | W10245786 | Lower Gearcase (candy Apple Red) |
|
- | |||||
| 5C | W11431681 | Lower Gearcase (matcha) |
|
- | |||||
| 6A | W11209463 | Pedestal, W/feet And Headlock (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 6B | W11097313 | Pedestal, W/feet And Headlock (candy Apple Red) (Replaces: W10245720) |
|
- | |||||
| 6C | W11431676 | Pedestal, W/feet And Headlock (matcha) |
|
- |
