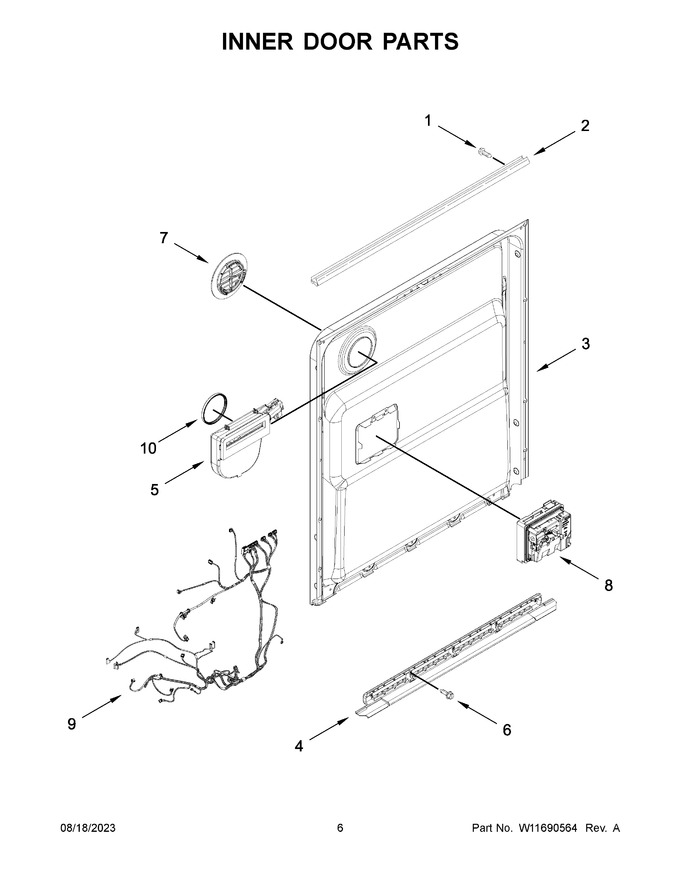

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 2 | W11213719 | Seal, Console/door (Replaces: W11050927) |
|
Immediately | $ 172.77 | ||||
| 3 | W11637956 | Inner Door Assembly (Replaces: W11631034) |
|
$ 373.01 | |||||
| 4 | W11252794 | Door Bottom, Seal (Replaces: W10920683) |
|
Immediately | $ 110.63 | ||||
| 5 | W11684259 | Vent Assembly (Replaces: W11574971) |
|
Immediately | $ 117.63 | ||||
| 6 | W11631670 | Screw (Replaces: W11476843) |
|
$ 14.72 | |||||
| 7 | W11613487 | Deflector, Vent (Replaces: W11531479) |
|
Immediately | $ 23.43 | ||||
| 8 | W10861000 | Dispenser Assembly (Replaces: W10620296) |
|
Immediately | $ 120.54 | ||||
| 9 | W11697034 | Wiring Harness (Replaces: W11595230) |
|
$ 135.80 | |||||
| 10 | W11545539 | Gasket, Vent (Replaces: W11184028) |
|
Immediately | $ 9.69 |
