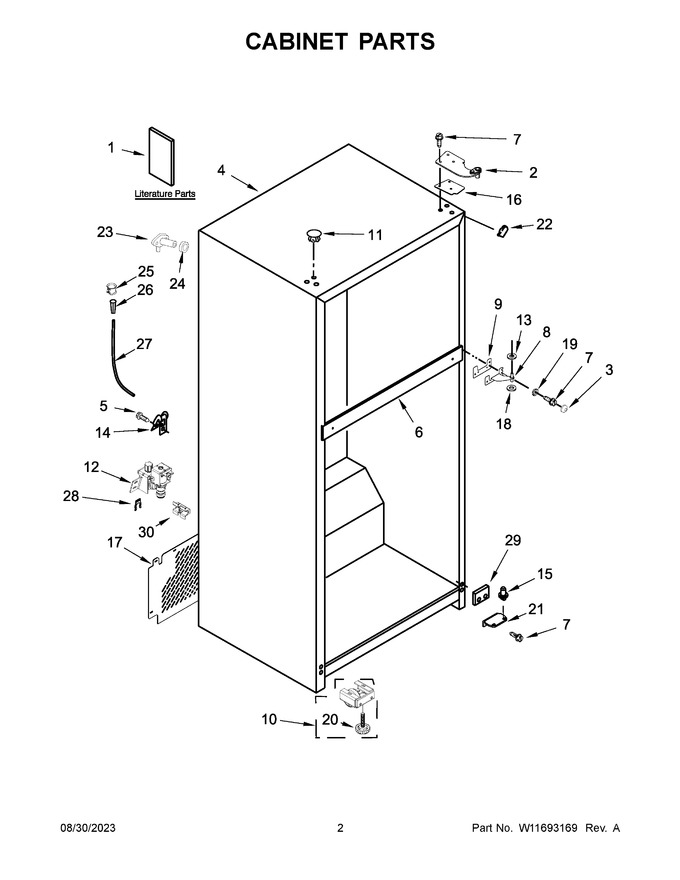

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11511781 | Tech Sheet |
|
- | |||||
| 2 | WPW10300065 | Assembly, Top Right Hinge (Replaces: W10300065) |
|
$ 13.94 | |||||
| 3 | W10846529 | Cap, Dome (white) (Replaces: W10674771) |
|
Immediately | $ 19.82 | ||||
| 4 | ARIBD05C36FE9C41F5CCC5AA149AF8AA604 | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 6 | ARIAE303BB782E87BFFA93CA33623AF4979 | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WP2166037 | Assembly, Hinge (center) (Replaces: 2166086) |
|
$ 85.08 | |||||
| 9 | 2166043 | Shim, Hinge (center) (white) |
|
$ 69.76 | |||||
| 10 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 11 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 19.22 | ||||
| 12 | WPW10279909 | Valve, Inlet (Replaces: W10498995) |
|
$ 189.89 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 14 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 22.12 | |||||
| 15 | W11026307 | Hinge Pin (Replaces: W10638688) |
|
Immediately | $ 77.61 | ||||
| 16 | W10883637 | Shim, Top Hinge |
|
$ 15.95 | |||||
| 17 | W11307292 | Cover Unit |
|
$ 49.82 | |||||
| 18 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 19 | W10847959 | Cap, Washer Dome (Replaces: W10674773) |
|
$ 11.27 | |||||
| 20 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 12.35 | |||||
| 21 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 22 | W10859322 | Filler, Corner (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 23 | W11292468 | Fitting, Water Tube (Replaces: W11249272) |
|
Immediately | $ 163.96 | ||||
| 24 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 25 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 65.90 | |||||
| 26 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 27 | W10823511 | Tube, Water (Replaces: 2181944) |
|
Immediately | $ 32.41 | ||||
| 28 | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 14.89 | |||||
| 29 | WP2201567 | Shim, Hinge (bottom) (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 30 | W11416450 | Spacer, Back |
|
- | |||||
| 11A | WPW10520305 | Plug, Hole (black) (Replaces: W10520305) |
|
$ 19.18 | |||||
| 11B | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 7.55 | ||||
| 1A | W11507956 | Use And Care Guide |
|
- | |||||
| 1B | W11647837 | Energy Guide |
|
- | |||||
| 22A | W11500943 | Filler, Corner (black) (Replaces: 2215384) |
|
$ 7.98 | |||||
| 22B | W11573591 | Filler, Corner (grey) (Replaces: W10761079) |
|
$ 8.22 | |||||
| 3A | W10853677 | Cap, Dome (black) (Replaces: W10679135) |
|
$ 19.89 | |||||
| 3B | W10849198 | Cap, Dome (grey) (Replaces: W10679139) |
|
$ 19.22 | |||||
| 9A | 2215385 | Shim, Hinge (center) (black) |
|
$ 91.34 |
