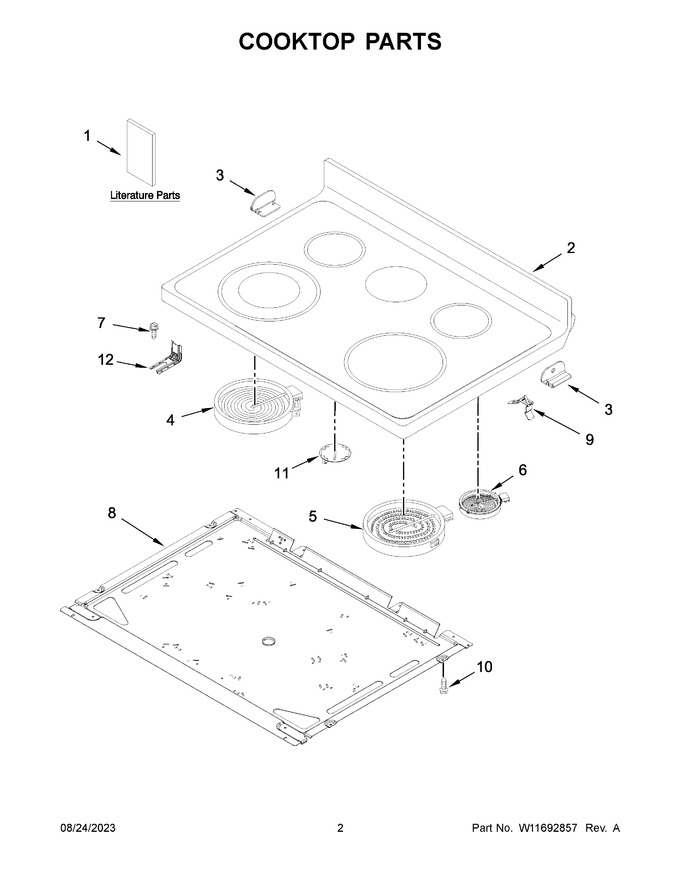

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11509598		User Instructions		Appelez-nous	-
2	W11091927		Cooktop (black)   (Replaces: W11022824)				$ 849.52
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11517959		Element (3000 And 1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 146.68
5	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
6	W11171119		Element (1200w) (left Rear And Right Rear)   (Replaces: 8273994)			Immediately	$ 225.62
7	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 133.94
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
1A	W11435574		Quick Start Guide		Appelez-nous	-
1B	W11326824		Tech Sheet		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11452625		Harness, Main		Appelez-nous	-
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 27.02
NI	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)				$ 39.67
NI	W11596058		Harness, Cooktop (right)   (Replaces: W11134551)			Immediately	$ 34.76
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
NI	W11598759		Harness, Warm Zone		Appelez-nous	-
