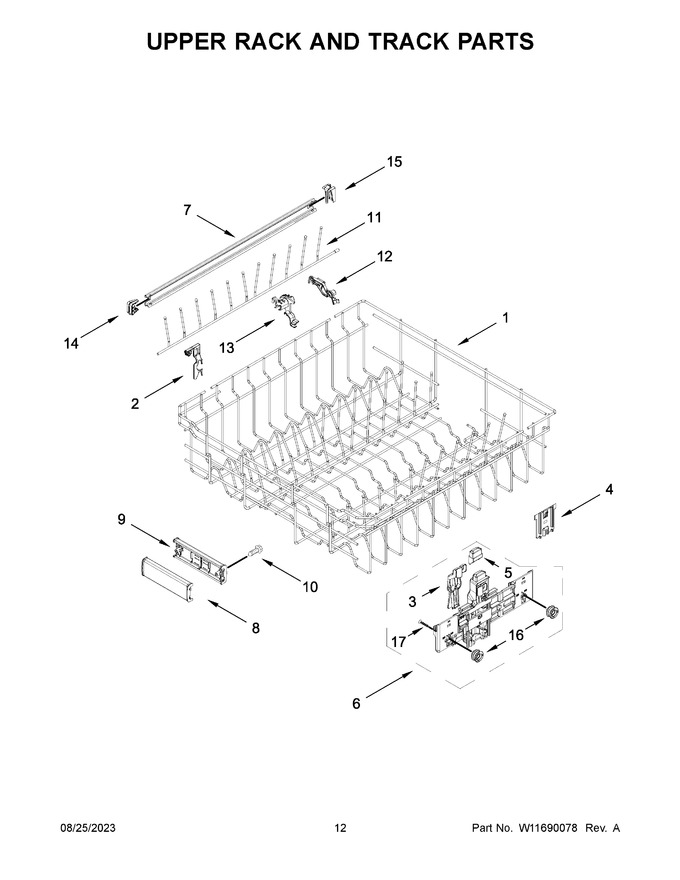

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11672788 | Dishrack, Upper (Replaces: W10847876) |
|
Immediately | $ 195.18 | ||||
| 2 | W11545820 | Clip, Stemware (Replaces: W11310287) |
|
Immediately | $ 29.37 | ||||
| 3 | W11180178 | Leveler, Adjuster Arm |
|
$ 76.16 | |||||
| 4 | W11580020 | Clip, Adjuster Arm (Replaces: W11180605) |
|
Immediately | $ 62.65 | ||||
| 5 | W11267699 | Button, Adjuster Arm |
|
$ 74.99 | |||||
| 6 | W11551537 | Adjustment Assembly (left Hand) (Replaces: W11268090) |
|
Immediately | $ 60.06 | ||||
| 7 | W11561204 | Track, Dishrack (Replaces: W11441109) |
|
Immediately | $ 38.56 | ||||
| 8 | W11268682 | Handle, Dishrack Front |
|
- | |||||
| 9 | W11268681 | Handle, Dishrack Rear |
|
Immediately | $ 116.36 | ||||
| 10 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 11 | W11806546 | Tine Row, Fold Down (Replaces: W11186528) |
|
Immediately | $ 68.67 | ||||
| 12 | W11627535 | Clip, Pivot (Replaces: W11179753) |
|
$ 26.48 | |||||
| 13 | W11179755 | Positioner |
|
$ 23.12 | |||||
| 14 | W11545307 | Track Stop, Front (Replaces: W11084874) |
|
Immediately | $ 15.45 | ||||
| 15 | W11579392 | Track Stop, Rear (Replaces: W11084872) |
|
Immediately | $ 20.41 | ||||
| 16 | W11545296 | Wheel (Replaces: W11048221) |
|
Immediately | $ 14.85 | ||||
| 17 | W11708397 | Screw (Replaces: W11376395) |
|
- | |||||
| 6A | W11551430 | Adjustment Assembly (right Hand) (Replaces: W11268086) |
|
Immediately | $ 75.53 |
