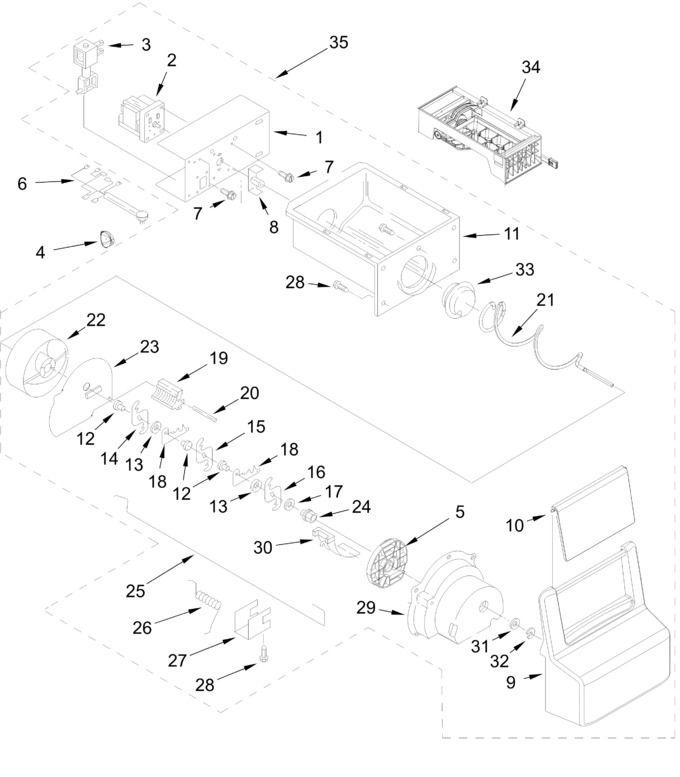

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11715972 |
|
Bracket, Motor (Replaces: W11307589) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11671282 |
 |
Motor, Dispenser (Replaces: W10884561) |
|
|
Immediately |
$ 110.51 |
|
|
| 3 |
WP2152713 |
 |
Solenoid Assembly (Replaces: 2152713) |
|
|
|
$ 250.11 |
|
|
| 4 |
W11602886 |
 |
Light Module, Led (Replaces: W11549780) |
|
|
|
$ 42.63 |
|
|
| 5 |
W10138206 |
|
Spacer, Crusher Housing |
|
Appelez-nous
|
- |
|
|
|
| 6 |
W11676779 |
|
Wire Assembly, Ice Dispenser (Replaces: W11218402) |
|
|
|
$ 73.22 |
|
|
| 7 |
WP489399 |
 |
Screw (Replaces: 489399) |
|
|
|
$ 7.30 |
|
|
| 8 |
WPW10169511 |
 |
Coupling, Motor (Replaces: W10169511) |
|
|
|
$ 24.51 |
|
|
| 9 |
W11427433 |
|
Cover, Ice Container Front |
|
|
|
$ 111.13 |
|
|
| 10 |
W11661892 |
|
Ice Door (Replaces: W11351746) |
|
|
|
$ 52.79 |
|
|
| 11 |
WPW10670845 |
 |
Container, Ice (Replaces: W10670845) |
|
|
|
$ 199.19 |
|
|
| 12 |
W11032812 |
|
Spacer, Step |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W11032808 |
 |
Spacer, Flat |
|
|
|
$ 10.63 |
|
|
| 14 |
W10278731 |
 |
Blade, Rotary A |
|
|
|
$ 90.87 |
|
|
| 15 |
W10278732 |
 |
Blade, Rotary B |
|
|
|
$ 91.00 |
|
|
| 16 |
W10278733 |
 |
Blade, Rotary C |
|
|
|
$ 91.00 |
|
|
| 17 |
489234 |
 |
Washer, Plain Upper Cam |
|
|
|
$ 14.04 |
|
|
| 18 |
W10181990 |
|
Blade, Fixed |
|
Appelez-nous
|
- |
|
|
|
| 19 |
W10138203 |
|
Block, Blade (Replaces: W10189708) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
489229 |
 |
Pin, Roll |
|
|
|
$ 48.47 |
|
|
| 21 |
WPW10295082 |
|
Auger (Replaces: W10295082) |
|
|
|
$ 171.61 |
|
|
| 22 |
4388736 |
 |
Drum (Replaces: W10698642) |
|
|
|
$ 96.97 |
|
|
| 23 |
W10852691 |
 |
Baffle, Floating (Replaces: W10403781) |
|
|
Immediately |
$ 34.85 |
|
|
| 24 |
WP1119018 |
 |
Nut, Bearing (Replaces: 1119018) |
|
|
|
$ 7.90 |
|
|
| 25 |
W11596045 |
 |
Arm, Control (Replaces: W10838981) |
|
|
|
$ 35.51 |
|
|
| 26 |
1119020 |
|
Spring, Return |
|
|
|
$ 19.13 |
|
|
| 27 |
1119021 |
|
Clip, Retainer (dispenser Rod) |
|
|
|
$ 10.96 |
|
|
| 28 |
WP488787 |
 |
Screw (Replaces: 488886) |
|
|
|
$ 11.26 |
|
|
| 29 |
WPW10185018 |
 |
Housing, Crusher (Replaces: W10185018) |
|
|
|
$ 130.65 |
|
|
| 30 |
WP1119017 |
 |
Deflector, Ice (Replaces: 1119017) |
|
|
|
$ 7.95 |
|
|
| 31 |
489234 |
|
Washer, Plain Upper Cam |
|
|
|
$ 14.04 |
|
|
| 32 |
WP489236 |
 |
Ring, Retainer (Replaces: 489236) |
|
|
Immediately |
$ 12.78 |
|
|
| 33 |
W10749708 |
 |
Coupling, Ice Conveyor (Replaces: W10698668) |
|
|
|
$ 27.44 |
|
|
| 34 |
W11700250 |
 |
Complete Icemaker Assembly (Replaces: W11359448) |
|
|
Immediately |
$ 298.37 |
|
|
| 35 |
WPW10558423 |
 |
Ice Container, Complete (Replaces: W10558423) |
|
|
|
$ 332.34 |
|
|
