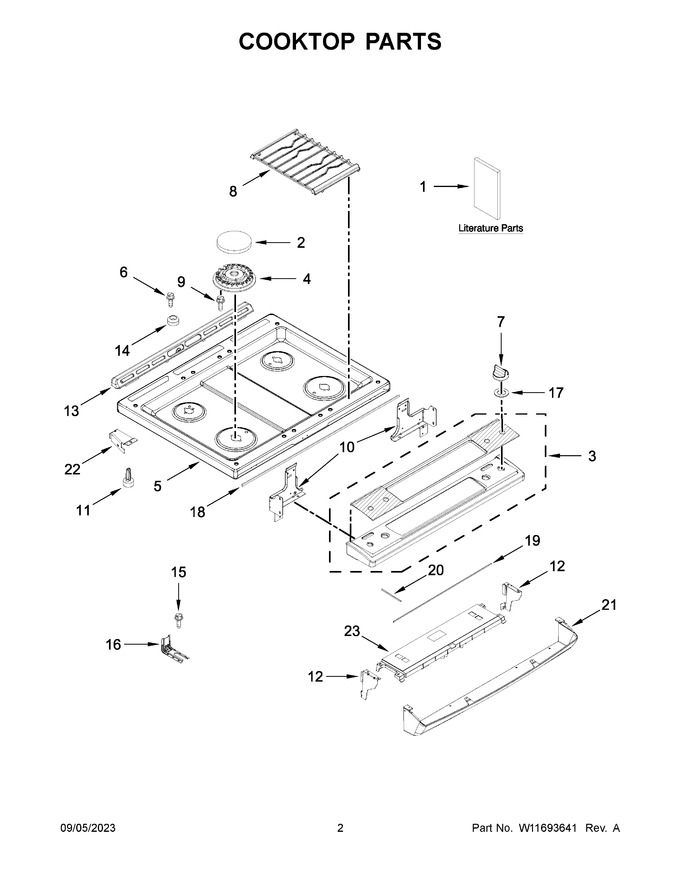

02 - Cooktop Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426595		Owners Manual		Appelez-nous	-
2	W11173535		Burner Cap Kit (set Of 4) (black)   (Replaces: W10825883)				$ 82.81
3	W11542194		Assembly, Console (stainless)   (Replaces: W11512200)				$ 376.06
4	W11211506		Spreader, Flame (left Front And Right Front)   (Replaces: W10732322)				$ 117.72
5	W10897891		Cooktop (black)   (Replaces: W11341045)				$ 583.97
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11687171		Knob (stainless)   (Replaces: W11513755)			Immediately	$ 42.21
8	W11384202		Kit, Grate (set Of 2) (black)   (Replaces: W11241651)				$ 353.23
9	W11244557		Screw (grounding)   (Replaces: 3196173)				$ 12.86
10	W10814303		Support, Cooktop (left)		Appelez-nous	-
11	8016P02260		Glide, Main Top		Appelez-nous	-
12	W10547960		Bracket, Console (left)				$ 20.90
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 185.00
14	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 13.42
15	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
16	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 20.73
17	W11131701		Bushing (black)   (Replaces: W10739036)				$ 20.94
18	W10802441		Gasket, Console And Cooktop   (Replaces: W10612719)			Immediately	$ 20.46
19	W10802457		Gasket, Console   (Replaces: W10689101)				$ 19.20
20	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 20.63
21	W10894124		Console, Lower Panel (black)   (Replaces: W10816943)				$ 504.32
22	W10162253		Brace, Corner (left)				$ 66.72
23	W11620561		Electronic, Control (lcx)   (Replaces: W11520693)			Immediately	$ 340.06
10A	W10814304		Support, Cooktop (right)		Appelez-nous	-
10B	W10814305		Bracket, Console (center)		Appelez-nous	-
12A	W10547961		Bracket, Console (right)				$ 20.90
1A	W11428054		Quick Start Guide		Appelez-nous	-
1B	W11324925		Sheet, Tech		Appelez-nous	-
1C	W11508880		Diagram, Wiring		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 70.73
4A	W11699919		Spreader, Flame (left Rear)   (Replaces: W10732319)				$ 150.60
4B	W11708326		Spreader, Flame (right Rear)   (Replaces: W10732320)				$ 43.02
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	W11466697		Harness, Console		Appelez-nous	-
NI	W11458865		Harness, Main			Immediately	$ 162.48
NI	W11450462		Harness, Bake And Broil				$ 100.75
NI	W10580229		Wire, Ground				$ 34.40
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
