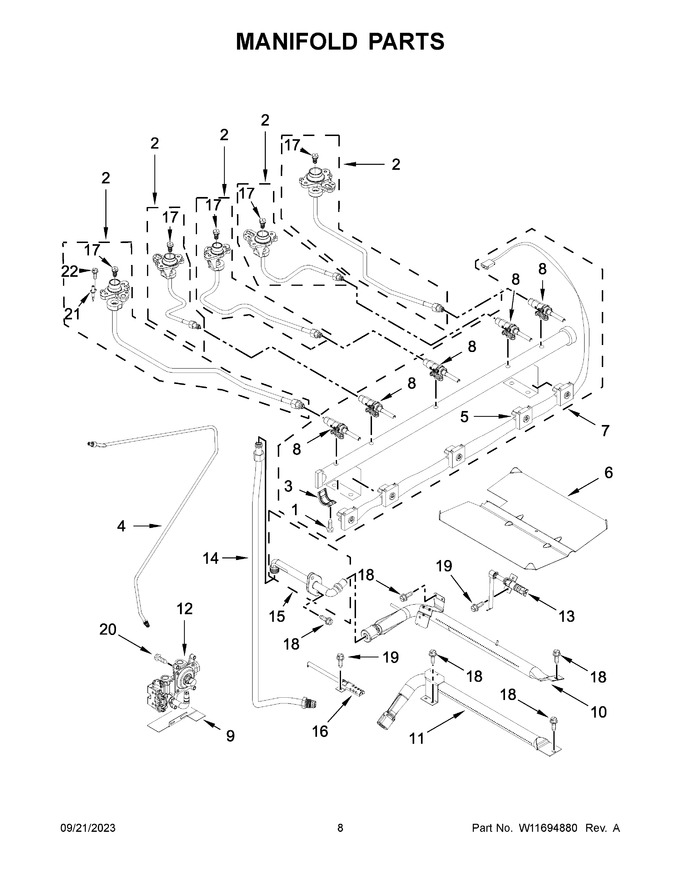

05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W11661571		Assembly, Orifice Holder (15.5 K) (left Front)   (Replaces: W10473934)				$ 81.99
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
4	W10510125		Tubing, Main Supply				$ 218.65
5	W11772399		Harness, Switch Spark   (Replaces: W10811693)				$ 86.33
6	3601P33645		Baffle, Broil Burner		Appelez-nous	-
7	W10811696		Assembly, Manifold				$ 380.08
8	W10748102		Valve, Gas (left Front And Right Rear)			Immediately	$ 287.94
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 94.98
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 91.65
12	W10919226		Valve, Gas   (Replaces: W10720102)			Immediately	$ 180.55
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 103.98
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 189.82
15	W10776437		Fitting, Broil				$ 103.45
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	WPW10170510		Orifice (15.5 K) (left Front)   (Replaces: W10170510)				$ 97.85
18	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
21	WPW10515459		Electrode (left Front, Left Rear, Right Front) (center)   (Replaces: W11194809)			Immediately	$ 43.77
22	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
17A	WPW10170507		Orifice (8k) (left Rear)   (Replaces: W10170507)				$ 97.85
17B	W10178934		Orifice (12k) (right Front)			Immediately	$ 103.60
17C	W10732136		Orifice (5k) (right Rear)				$ 94.43
17D	W10251991		Orifice (7k) (center)				$ 90.76
21A	WPW10515459		Electrode (right Rear)   (Replaces: W10515459)			Immediately	$ 43.77
2A	W11643127		Assembly, Orifice Holder (9.5k) (left Rear)   (Replaces: W10732140)				$ 87.06
2B	W11661950		Assembly, Orifice Holder (15k) (right Front)   (Replaces: W10732137)				$ 84.71
2C	W10732139		Assembly, Orifice Holder (5k) (right Rear)				$ 114.80
2D	W10732141		Assembly, Orifice Holder (8k) (center)				$ 123.86
8A	W10748103		Valve, Gas (left Rear And Right Front)				$ 287.94
8B	W10748105		Valve, Gas (center)		Appelez-nous	-
NI	WPW10400494		Orifice, Lp Bake   (Replaces: W10400494)			Immediately	$ 113.46
NI	W11087486		Lp Conversion Kit (bake And Broil)   (Replaces: W10566535)			Immediately	$ 117.95
NI	W11647020		Lp 5 Orifice Conversion Kit   (Replaces: W11600783)		Appelez-nous	-
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11216991		Orifice, Lp Broil   (Replaces: W10465078)			Immediately	$ 93.06
