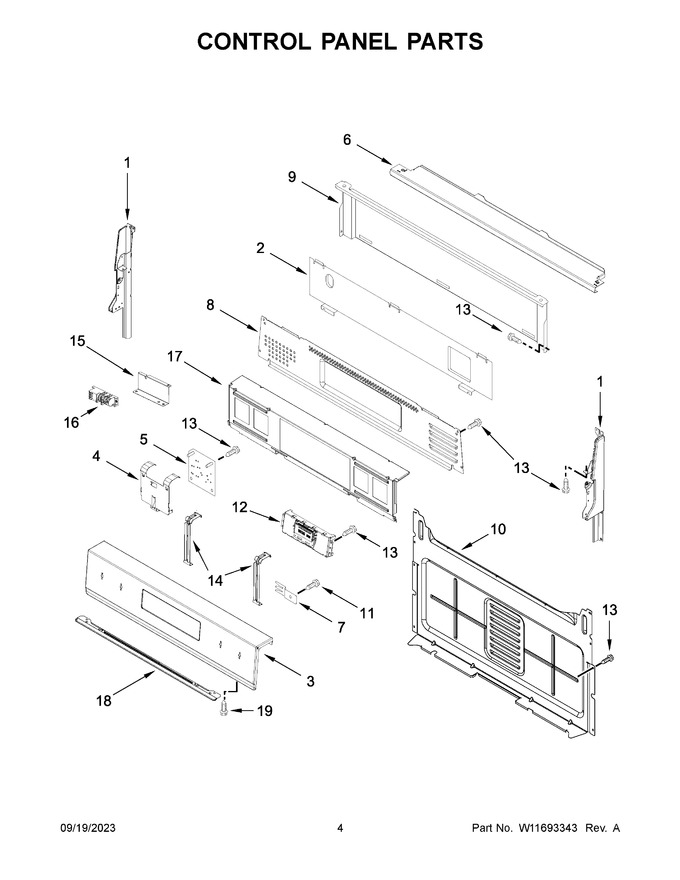

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 347.77
2	8053505		Shield, Heat				$ 165.89
3	W11531750		Panel, Control (stainless)   (Replaces: W11448332)				$ 371.09
4	W10762981		Bracket, Mounting				$ 76.42
5	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 218.43
6	W10516123		Bracket, Console Mounting		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 167.90
8	W10198745		Cover, Upper				$ 128.90
9	W10192841		Shield, Heat				$ 106.69
10	W10184251		Cover, Back		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	W11620570		Control, Electronic (lcx) (black)   (Replaces: W11520700)				$ 374.05
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W10856361		Bracket, Control		Appelez-nous	-
15	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
16	WPW10475149		Module, Spark   (Replaces: W10475149)			Immediately	$ 179.05
17	W10901802		Panel, Backer				$ 96.79
18	W11443964		Bracket, Eye Brow (black)				$ 222.43
19	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
1A	W11213292		Endcap (black (right))				$ 71.65
3A	W11563416		Panel, Control (black Stainless)   (Replaces: W11448333)		Appelez-nous	-
