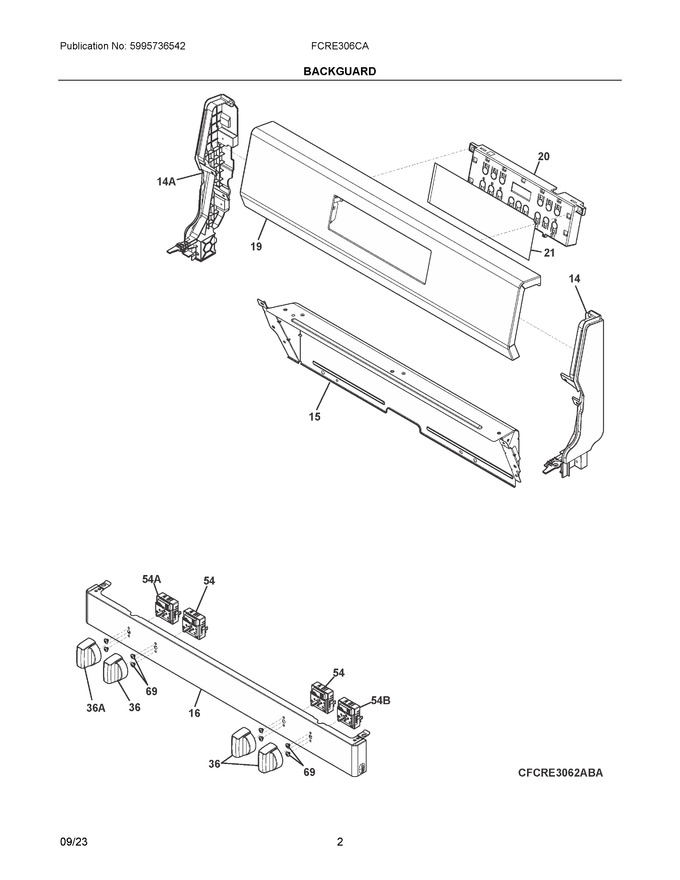

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 58.57
15	5304526437		Shield, Backguard, Inner		Appelez-nous	-
16	5304528742		Manifold Panel, Black Stainless		Appelez-nous	-
19	5304535792		Panel, Backguard, Black Stainless		Appelez-nous	-
20	140252320092		Controller, Electronic, Oven, Ui305   (Replaces: 5304534820)			Immediately	$ 146.09
21	5304534821		Overlay, Oven Control, Black			Immediately	$ 17.03
36	5304528582		Knob, Infinite Switch, Black Stainless, Single				$ 25.75
54	5304522966		Switch, Infinite, Single			Immediately	$ 86.79
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, 137*, Switch Mtg.			Immediately	$ 2.58
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 54.68
36A	5304514120		Knob, Infinite Switch, Black Stainless, Dual			Immediately	$ 25.63
54A	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 37.01
54B	140173680012		Switch, Infinite, Turbo Boil   (Replaces: 5304522965)			Immediately	$ 38.18
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.54
NI	5304534815		Harness, Wiring, Switches				$ 128.50
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37

    View Diagram in Separate Window       Print Part List
