SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

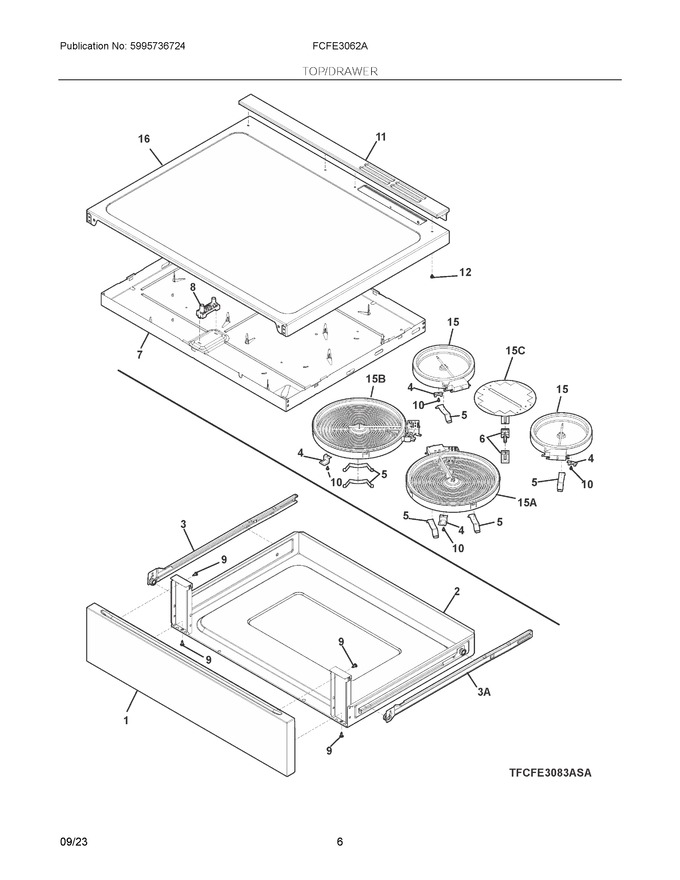

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526302		Panel, Drawer, Black, Outer		Appelez-nous	-
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 172.06
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 23.71
4	387683300		Bracket, Surface Element			Immediately	$ 14.91
5	5304526627		Spring, Element Support			Immediately	$ 9.10
6	5304528474		Clip, Spring, Element				$ 8.43
7	5304533428		Burner Box, Smoothtop		Appelez-nous	-
8	5304538115		Light, Indicator, Hot Surface   (Replaces: 5304526251)				$ 14.81
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
10	5304533456		Screw, T15 Self Tap, 3.5 X 8, Element Bracket				$ 3.89
11	5304528290		Trim, Vent, Black				$ 86.56
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	5304528230		Smoothtop, Assembly, Steel/glass, Black			Immediately	$ 281.10
15A	8583165300010		Element, Surface, 9", 3200w, Turbo Boil   (Replaces: 316530001)			Immediately	$ 84.51
15B	5304533520		Element, Radiant, 9/6", Top, 3000w			Immediately	$ 100.15
15C	140273621015		Element, Radiant, 100w, Warmer   (Replaces: 5304526286)				$ 39.74
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 23.71
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304529019		Harness, Wiring, Surface Element			Immediately	$ 118.81

    View Diagram in Separate Window       Print Part List
