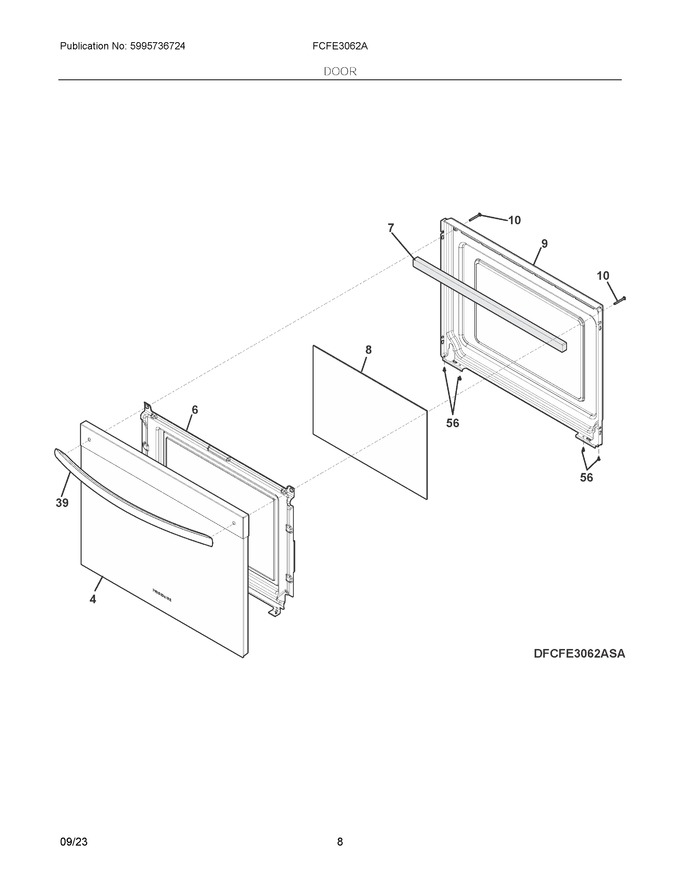

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304528486		Door Assembly, Outer, Glass/steel, White				$ 200.22
6	5304526283		Shield, Wool			Immediately	$ 120.86
7	140299178057		Insulation, Door Top   (Replaces: 5304526657)		Appelez-nous	-
8	140163079118		Glass, Door, Inner, Hbii   (Replaces: 5304526388)				$ 59.41
9	5304533466		Liner, Oven Door, Midnight Black			Immediately	$ 130.38
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.			Immediately	$ 2.53
39	5304534657		Handle, Door, Aluminum, White				$ 59.31
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
NI	316483102		Label, Anti-tip				$ 3.95
